Introduction The Depon® IH Serial chemical centrifugal pump is single stage suction cantilever centrifugal pumps. It used to deliver corrosive liquid which not containing solid particles and similar to water in viscidity. It featured by wide range of performance, high efficiency, superior...
Introduction

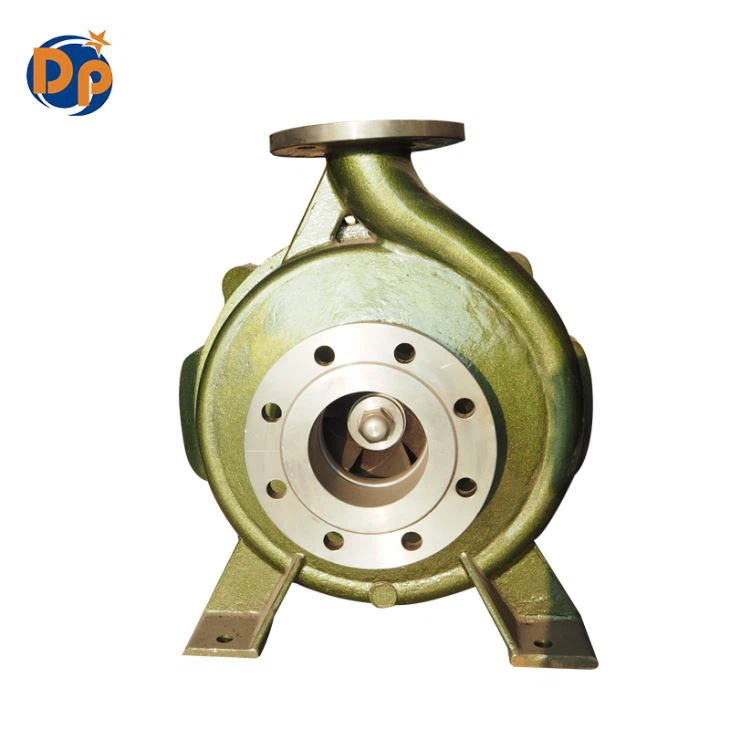

The DEPUMP® IH Serial chemical centrifugal pump is single stage suction cantilever centrifugal pumps. It used to deliver corrosive liquid which not containing solid particles and similar to water in viscidity. It featured by wide range of performance, high efficiency, superior standardzation, easy maintenance etc.
High efficiency Single-stage
Advantage
Durable, low noise, long life bearing
Premium quality mechanical seal
Electric or diesel drive
Performance
*Capacity: 6.3-400m3/h
*Head: 5-125m
*Speed: 2900r/min and 1450r/min
*Power of fitted motor: 0.55-90kw
*Inlet diameter: 50-200mm
*The max. working pressure: 1.6Mpa
| IH Type Pump Performance | ||||||
| Type | Capacity(m3/h) | Head(m) | Speed(r/min) | Motor Power(kw) | Eff.(%) | NPSH(m) |
| IH50-32-125 | 7.5-15 | 18-23 | 2900 | 2.2 | 51 | 2 |
| 3.75-7.5 | 4.5-5.75 | 1450 | 0.55 | 45 | 2 | |
| IH65-50-125 | 15-30 | 18.6-21.3 | 2900 | 3 | 62 | 2 |
| 7.5-15 | 4.5-5.4 | 1450 | 0.55 | 55 | 2 | |
| IH65-40-315 | 15-30 | 124-136.8 | 2900 | 30 | 39 | 2 |
| 7.5-15 | 31.7-32.4 | 1450 | 5.5 | 33 | 2 | |
| IH80-65-160 | 30-60 | 28.4-36 | 2900 | 11 | 67 | 2 |
| 15-30 | 7.2-9 | 1450 | 1.5 | 62 | 2 | |
| IH100-65-200 | 60-120 | 44-56 | 2900 | 22 | 72 | 3.9 |
| 30-60 | 11-14 | 1450 | 3 | 68 | 2.5 | |
| IH125-100-250 | 120-240 | 73-90 | 2900 | 75 | 75 | 4.5 |
| 60-120 | 18.25-22.5 | 1450 | 11 | 72 | 2.3 | |
| IH150-125-315 | 120-240 | 28.5-36.3 | 1450 | 30 | 75 | 2.8 |
| IH150-125-400 | 120-240 | 44-57.5 | 1450 | 55 | 70 | 2.5 |
| IH200-150-315 | 240-460 | 29.4-35.6 | 1450 | 55 | 79 | 3.5 |
| IH200-150-400 | 240-460 | 47-55.8 | 1450 | 90 | 78 | 3.5 |
