IH type electric chemical pump with motor for sale
The Depump® IH Series chemical centrifugal pump is single stage suction cantilever type centrifugal pumps. It used to deliver corrosive liquid which not containing solid particles and similar to water in viscosity. It featured by wide range of performance, high efficiency, superior standardization, easy maintenance etc.
Pump Details
Features
HighefficiencySingle-stage
Durable,lownoise,longlifebearing
Premiumqualitymechanicalseal
Electricordieseldrive

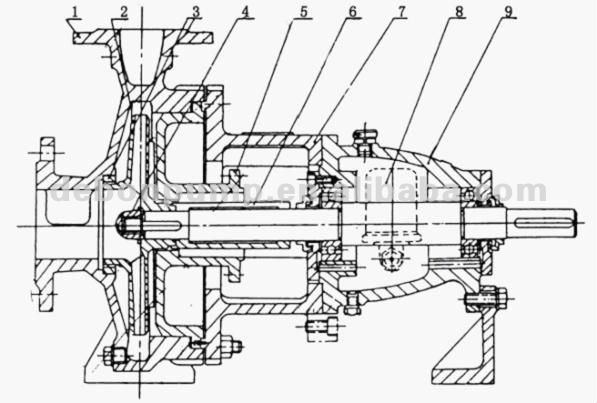

Structure of CentrifugalChemical Pump
1 | Frameplate | 2 | Impeller | 3 | Sealingring |
4 | Impellernut | 5 | Coverplate | 6 | Sealingassembly |
7 | Middlebracket | 8 | Shaft | 9 | Brackerassembly |
Performance Table
| IH type pump performance | ||||
| Pump type | Capacity(m3/h) | Head (m) | Motor power(kw) | Speed(r/min) |
| IH50-32-125 | 7.5 | 23 | 2.2 | 2900 |
| IH50-32-160 | 7.5 | 34.5 | 3 | 2900 |
| IH50-32-200 | 7.5 | 51.8 | 5.5 | 2900 |
| IH50-32-250 | 7.5 | 82 | 11 | 2900 |
| IH65-50-125 | 15 | 21.3 | 3 | 2900 |
| IH65-50-160 | 15 | 34.2 | 5.5 | 2900 |
| IH65-40-200 | 15 | 53.2 | 11 | 2900 |
| IH65-40-250 | 15 | 81.2 | 15 | 2900 |
| IH65-40-315 | 15 | 126.8 | 30 | 2900 |
| IH80-65-125 | 30 | 23.2 | 5.5 | 2900 |
| IH80-65-160 | 30 | 36 | 11 | 2900 |
| IH80-50-200 | 30 | 55.2 | 15 | 2900 |
| IH80-50-250 | 30 | 84 | 30 | 2900 |
| IH80-50-315 | 30 | 128 | 48 | 2900 |
| IH100-80-125 | 60 | 23.7 | 11 | 2900 |
| IH100-80-160 | 60 | 37 | 15 | 2900 |
| IH100-65-200 | 60 | 56 | 22 | 2900 |
| IH100-65-250 | 60 | 88 | 37 | 2900 |
| IH100-65-315 | 60 | 132 | 75 | 2900 |
| IH125-100-200 | 120 | 61 | 45 | 2900 |
| IH125-100-250 | 120 | 90 | 75 | 2900 |
| IH125-100-315 | 120 | 132.5 | 110 | 2900 |
| IH125-100-400 | 60 | 52 | 30 | 1450 |
| IH150-125-250 | 120 | 24.8 | 30 | 1450 |
| IH150-125-315 | 120 | 36.3 | 30 | 1450 |
| IH150-125-400 | 120 | 57.5 | 55 | 1450 |
| IH200-150-250 | 240 | 23 | 37 | 1450 |
| IH200-150-315 | 240 | 35.6 | 55 | 1450 |
| IH200-150-400 | 240 | 55.8 | 90 | 1450 |

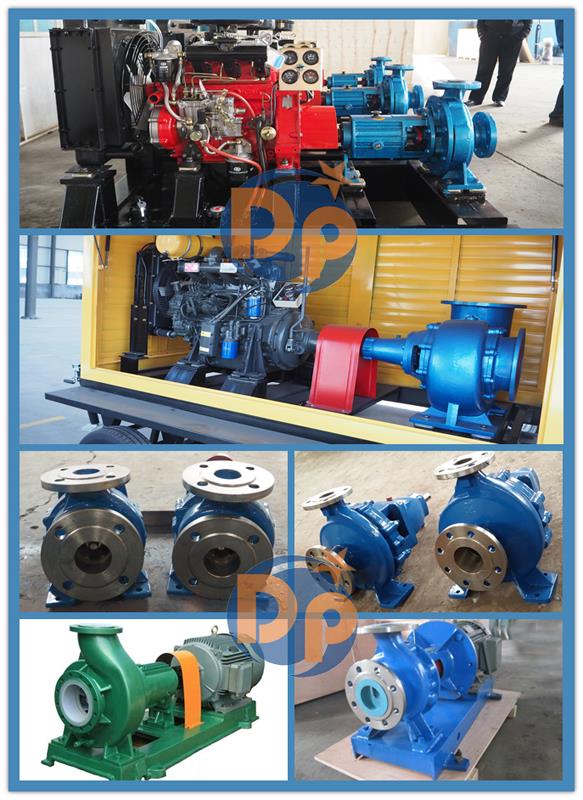

Pump Images
FAQ
Areyoumanufacture?
Yes.Weareoneofleadingmanufacturers .
DoyouhaveStockproductionstosell?
Yes,ofcourse.ButwealsoofferOEMservice.Pleasesendussomedrawing.
WhatinformationI need to offer foraquotation?
Liquid:___ Pump Capacity___m3/h
PH:_____ Pump Head: ___m
Specific of gravity___ Voltage ___V Frequency ___Hz
Doyouinspectthefinishedproducts?
Yes.EachstepofproductswillbecarriedoutinspectionbyQCdepartmentuntilshipping.
What the the MQQ?
1 set even 1 piece pump spare.
How to guarantee the quality?
All our pump and spare parts pass ISO 9001:2008.
We want establish long term cooperation, Quality is our life.
