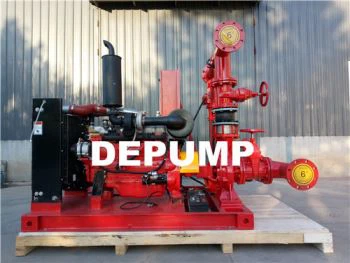

Diesel Engine Fire Water Pumps

Diesel engine fire water pumps

Brief introduction

The national standard name of diesel engine fire pump is "engineering diesel engine fire pump unit", and the national standard model is XBCL / Q, where "L" is the head value and "Q" is the flow value. XBC diesel engine fire pump set is the latest national standard GB6245-2006 "fire pump performance requirements and test methods". This series of products have a wide range of lift and flow, which can fully meet the fire water supply of warehouses, docks, airports, petrochemical, power plants, liquefied gas stations, textile and other industrial and mining enterprises.

Main features

1. Automatic start: the diesel water pump unit can automatically start and put into full load operation within 15 seconds after receiving fire alarm / pipe network pressure / power failure / or other start signals;

2. Automatic charging: the battery can be automatically charged by the charging motor of the commercial power or diesel engine to ensure the smooth start of the unit;

3. Automatic alarm: automatic alarm protection for low oil pressure, high water temperature and other faults of diesel engine, alarm and shut down in case of overspeed;

4. Automatic preheating: make the diesel engine in hot standby state to ensure emergency work;

5. Direct connection type: the diesel water pump unit under 360kw adopts the technology of direct connection between diesel engine and water pump through elastic coupling, which is the first in China. It reduces the fault points, greatly shortens the starting time of the unit, and increases the reliability and emergency performance of the unit;

6. Users can also set other alarm output (non-standard supply);

7. It has the functions of telemetry, remote signaling and remote control (non-standard supply);

Standard scope of supply

1) Automatic diesel water pump unit: diesel engine, water pump, cooling fan, radiator tank, steel structure base, (water heater), battery and connecting wire, exhaust muffler, expansion joint, automatic control panel.

2) It can provide the type inspection or entrusted inspection report issued by the national fire equipment quality supervision and inspection center.

3) It can be designed as a pump unit, oil tank, automatic control panel and battery unit.

4) It can be designed as a pump unit, oil tank at the bottom of the machine, automatic control panel, storage battery and rainproof box.

Select the scope of supply

1) 300l-1000l daily oil tank or bottom oil tank

2) Linkage control panel of diesel water pump unit and electric water pump unit

3) Electric water pump unit, pressure stabilizing pump unit, pressure stabilizing tank, etc.

Any further question feel free to contact with us, we would like to provide an quotation for you.
