75kw WQ Submersible Sewage Water Pump

75kw WQ Submersible Sewage Water Pump

centrifugal submersible water pump/cast iron submersible pump/ strainless steel submersible pump/sewage pump/slurry pump

Send InquiryChat Now
Product Details

TheDepon®WQ Series submersible sewage pump is mainly used for municipal works, industrial buildings,hotels,hospitals,civil air defense,mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.

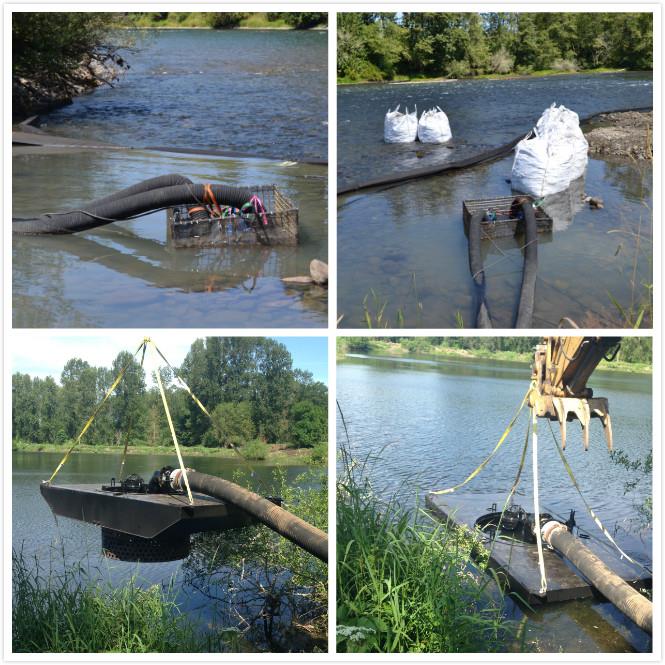

Dewatering pump kapasitas besar pompa pasir<img

Features

1 High stength cast iron pump construction;

2 Impeller options are available to suit a range of applications and pumped products including single,double or triple vane;

3 420 stainless steel shaft;

4 Built in cooling system allows operation when motor is submerged or above water level.


Model Meaning


Structure Of Pump


Performance Curve


Performance Table


Type

Outlet Dia. (mm)

Capacity (m3/h)

Head (m)

Power (kw)

Efficiency (%)

50WQ15-8-0.75

50

15

12

0.75

52

65WQ30-10-2.2

65

30

10

2.2

62

80WQ50-8-2.2

80

50

8

2.2

60

F

100WQ80-7-3

100

80

7

3

64

150WQ150-10-7.5

150

150

10

7.5

72

200WQ300-10-15

200

300

10

15

74

250WQ500-10-30

250

500

10

30

72

300WQ700-19-55

300

700

19

55

75

350WQ1100-25-110

350

1100

25

110

76

400WQ2000-23-185

400

2000

23

185

80

500WQ3000-15-132

500

3000

15

185

72


*****More pump models please contact us*****
