Centrifugal Vertical Horizontal Slurry Gravel Pump

Slurry Pump, Gravel Slurry Pump, Sand Pump manufacturer / supplier in China, offering Centrifugal Vertical Horizontal Slurry Gravel Pump, 4 Inches Mini Sand Pump for Dredging Machinery (100ZJS), 2 Inch Mining Froth Pumps (2 QV-AF) and so on.

Send Inquiry→
Centrifugal Vertical Horizontal Slurry Gravel Pump

渣浆泵展示图

Basic Info

  • Model NO.: MAH(R), MAHM, MHH, MSP(R)

  • Max.Capacity: >400 L/min

  • Impeller Number: Single-Stage Pump

  • Influent Type of Impeller: Single Suction Pump

  • Pump Casing Combined: Verticaljoint Surface Pump

  • Impeller: Closed

  • MOQ: 1 Set

  • Trademark: Naipu Or OEM

  • Specification: CE, ISO, SGS

  • HS Code: 8413709990

  • Max.Head: >150m

  • Driving Type: Magnetic

  • Working Pressure: High Pressure Pump

  • Position of Pump Shaft: Horizontal Pump

  • Mounting Height: Since Irrigation Centrifugal Pumps

  • Usage: Pumps

  • Color: As customer's requirements.

  • Transport Package: Packed with Wooden Box or as Customer′s Request

  • Origin: Shijiazhuang, China

Product Description

Professional factory of slurry pump, sand gravel pump , dredging pump and OEM Service

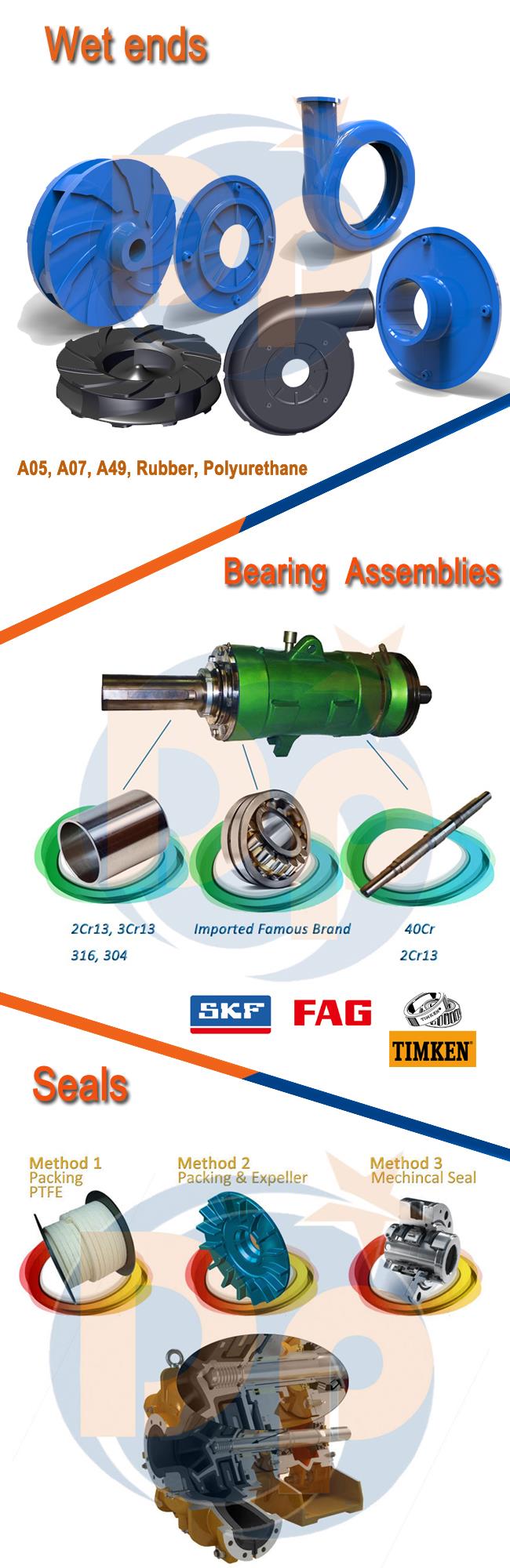

slurry pump parts


Name: MAH(R),MHH Slurry Pumps
Pump Type: Centrifugal Horizontal, single or multistage Slurry Pump
Drive Type: ZVz/CRz/CV/DC
Power: Motor / Diesel
Discharge Size: 1 to 18 inch
Capacity: 0- 5400(m3/h)
Head: 0-118(m)

Feature:

1. centrifugal slurry pumps and spare parts can fully interchange with world famous brand.

2. These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries.

3. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casting liners and Impellers, which are all interchangeable within a common casting assembly.

4. Wear -resistant Metal Liner and Rubber Liner available

5.Seal Type: gland Seal , Expeller Seal and Meachnical seal

6.Can be installed in multistage series

7. Can be positioned at intervals of 45 degree.

8. easy to maintenance

Application:

Centrifugal mining slurry pump are widely used in mining, power, metallurgy, coal, deading, building material and other industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.

Minerals Flotation Processing
Electric Factory Coal Preparation
Coal Washing
Chemical Medium Processing
Effluent Handling
Sand And Gravel Handling

Type Notation :

6/4 D-AH
6------ Suction Diameter(inch)
4------- Discharge Diameter(inch)
D-------- Bracket type




MAH SLURRY PUMP PERFORMANCE PARAMETERS


Type

Allowable Mating Max. Power(Kw)

Clear Water Performance

Impeller

Capacity/Q m³/hr

Head/m

Speed/rpm

Max Efficiency/%

NPSH/m

Nos of Vane

Impeller Diameter/mm

1.5X1-MAH

15

12.6--28.8

6--68

1200--3800

40

2--4

5

152

2X1.5-MAH

15

32.4--72

6--58

1200--3200

45

3.5--8

5

184

3X2-MAH

30

39.6--86.4

12--64

1300--2700

55

4--6

5

214

4X3-MAH

30

86.4--198

9--52

1000--2200

71

4--6

5

245

6X4-MAH

60

162--360

12--56

800--1550

65

5--8

5

365

8X6-MAH

300

360--828

10--61

500--1140

72

2--9

5

510

10X8-MAH

560

612--1368

11--61

400--850

71

4--10

5

686

12X10-MAH

560

936--1980

7--68

300--800

82

6

5

762

14X12-MAH

560

1260--2772

13--63

300--600

77

3--10

5

965

16X14-MAH

1200

1368--3060

11--63

250--550

79

4--10

5

1067

18X16-MAH

1200

2520--5400

13--57

200--400

85

5--10

5

 1370



Materials of Construction



LINERS

IMPELLERS

CASING

BASE

EXPELLER

EXPELLER RING

SHAFT SLEEVE

SEALS

Standard

Chrome Alloy
Natural Rubber

Chrome Alloy
Natural Rubber

SG Iron

SG Iron

Chrome Alloy
or
SG Iron

Chrome Alloy
or
SG Iron

SG Iron

Rubber
and
Nitrile

Options

Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Viton
Nitrile
EPDM
Hypalon

Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Nitrile
Hypalon

SG Iron
Various grades

MS
Fabricated
Cast Iron

NI Resist
Ferralium
Hastelloy C
Polyurethane
316 SS
W151

NI Resist
Ferralium
Hastelloy C
316 SS
Rubber
W151
Polyurethane
Neoprene
Butyl
Nitrile

EN56C
Ferralium
Hastelloy C
Titanium
316 SS
304 SS

Ceramic
Stellite
Chrome Oxide
Nordel
Neoprene
Viton

Main Pump Model




Our Service

1. Quick Reply
Your inquiry related to our products or prices will be
replied within 12 hours.

2.Pump Choice .
Please let us know the application, capacity and head ,We can help to select the suitable pump

3.Technical Surport .
We have a group of high quality technicians with rich experience who can solve everything  during the whole process.

4.Guarantee quality.
All the products  have proved by ISO 9001:2008, CE, SGS. And also will be inspected strictly before delivery. For Comon parts(except wet end parts,) waranty time: 1 years

5.Perfect after -sales .

We will be responsible for the whole life period

6.OEM order.Many material are available ,like High chrome, rubber , stainless steel and etc.Steely alloy.
