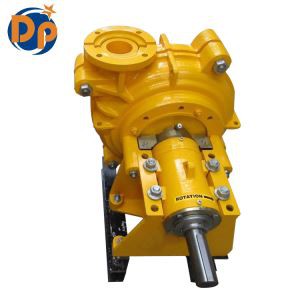

Electric Motor Driven Horizontal Centrifugal Small Slurry Pump
Prouduct Discreption :
A wide variety of impellers and shaft seals provide a perfect fit for a wide range of applications. The pump provides
excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
Features:
· Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
· Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
· Casing – Casing halves of cast or ductile iron provide high operating pressure capabilities.
· Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
· Throat bush – wear is reduced and maintenance simplified by the use of tapered.
Pump Details :
Performance curve:
Structure of pump:
Performance Table :
| Performance Of DP-MAH | |||||||
| Type | Max. power | Capacity | Head | Impeller | Max. particle size | ||
| Quantity of vanes | |||||||
| kw | (m³/h) | (m) | (mm) | ||||
| 1.5x1B-MAH | 15 | 3.6-21.6 | 6-65 | 5 | 14 | ||
| 1.5x2B-MAH | 15 | 7.2-48.6 | 5-62 | 5 | 19 | ||
| 2x3C-MAH | 30 | 21.6-88.56 | 15-40 | 5 | 21 | ||
| 4x3C-MAH | 30 | 28.8-158.4 | 7-53 | 5 | 28 | ||
| 6x4D-MAH | 60 | 72-331.2 | 11-64 | 5 | 44 | ||
| 8x6E-MAH | 120 | 126-720 | 6-62 | 5 | 63 | ||
| 10x8ST-MAH | 560 | 216-1051.2 | 9-64 | 5 | 76 | ||
| 12x10ST-MAH | 560 | 316.8-1620 | 10-66 | 5 | 86 | ||
| 14x12ST-MAH | 560 | 504-2455.2 | 10-75 | 5 | 90 | ||
Application
Transfer of abrasives and high density slurries in:
Mining
Metallurgical Processing
Civil Construction
Heavy Industry
Processing
Contact for a Quotation:
Shirley She
Cell: 0086 13932278621
Email: admin@deponpump.com
