8/6E-MG,Liquid medium:Slurry; Bearing frame:C; Max. Power:160hp;Maximum flow rate:594 m3/h
The Depump® Gravel Pump is the world's standard for the most difficult mill duties. A wide variety of impeller and shaft seals provide a perfect fit for a wide range of applications. The Depump® gravel pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
| 8/6E-MG TYPE Gravel PUMP | |
| Model | 8/6E-MG |
| Capacity | 126-594 m3/h |
| Head | 9-48 m |
| Power | 120 kw |
| Color | As Customer Required |
| Casing material | Cast Iron |
| Wet ends material | High chrome Cr27% |
| Shaft material | 40Cr |
| Shaft seal material | Gland packing/mechanical seal |
Bare shaft pump unit price :USD $5781
Features
Bearing assembly:large diameter shaft with short overhang contributes to long bearing life;
Liners:Easily replaceable liners are bolted, not glued to the casing for positive maintenance;
Casing:Casing halves of cast or ductile iron provide high operating pressure capabilities;
Impeller:Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination;
Throatbush:Wear is reduced and maintenance simplified by the use of tapered.
Application
Metallurgy
power plant
chemical industry
Fine Tailing
mineral processing
gold mining
river sand dredging work

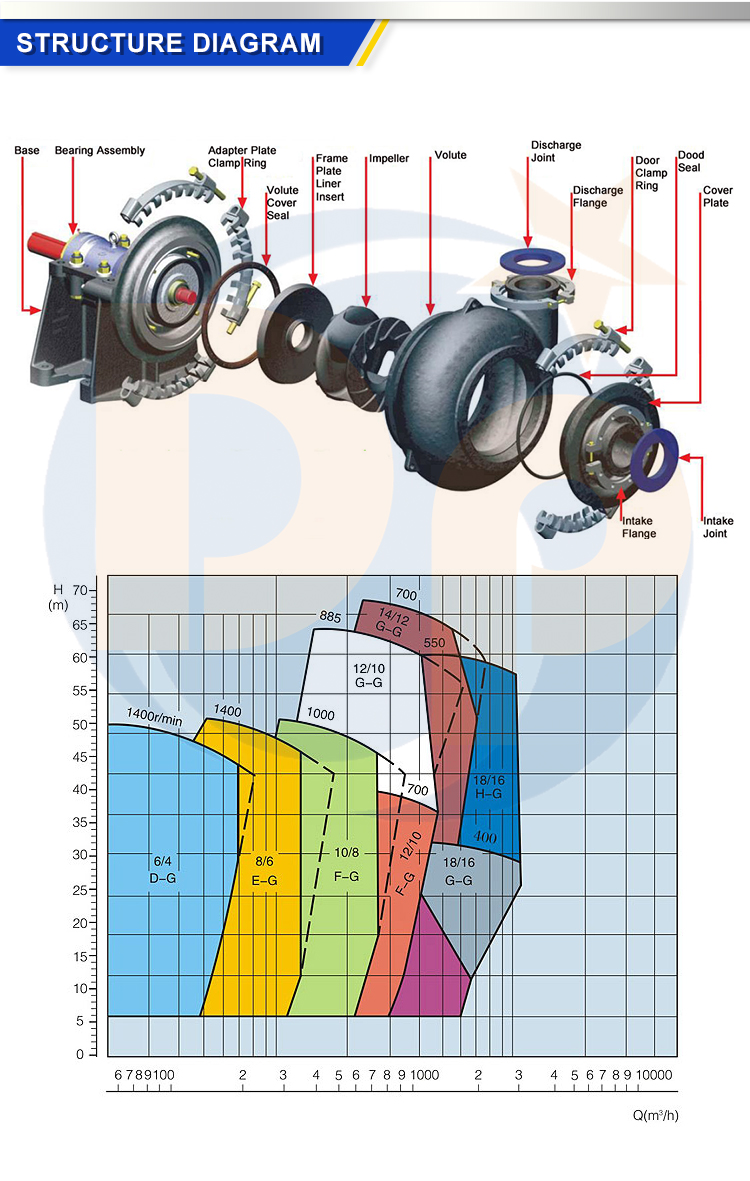

Curve
Dimension drawing
Pump Details
SINCE 1998
20+ years manufacting and exporting pump experience,more options and solutions available for you.
Advanced equipment
Professional engineer
Updated design
Excellent quality
Factory direct price
Professional knowledge and attentive service
Strict quality inspection and timely delivery
Highly value every order, no matter how small it is.
offer confidentiality agreement "business secret contract"
Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.
Q: How can I make order online?
A: Send email or skype us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 sets.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, MoneyGram
Q: Which shipping terms are available?
A: By sea, DHL, TNT( express for spare parts)
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money.Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery
Q: Can I buy parts separately?
A: Yes,all of the parts can buy separately.
Q:What information I need to offer for quotation?
A:Pump Capacity___m3/h Pump Head: ___m PH:_____
Liquid:___ Frequency ___Hz
