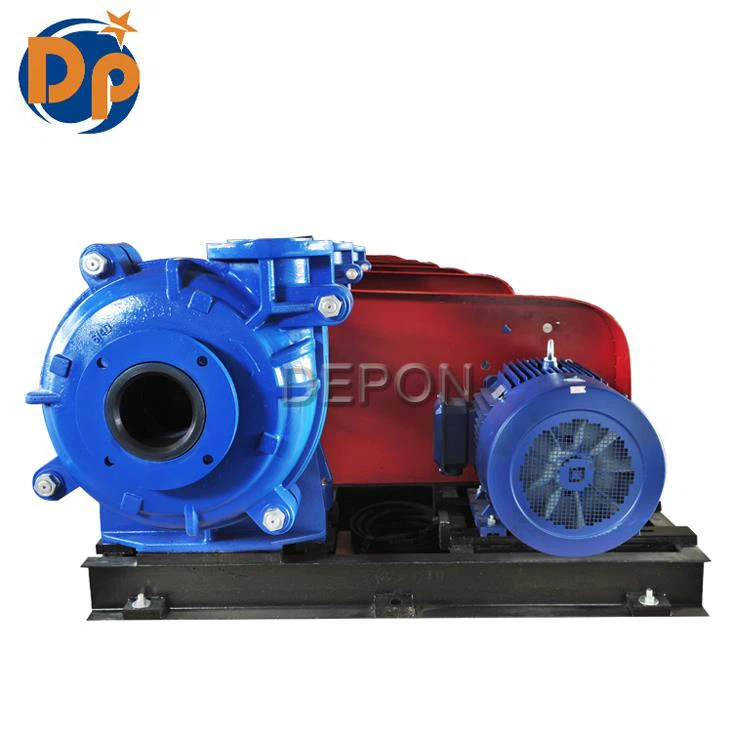

Horizontal High Efficiency Mine Dewatering Slurry Pump

Depon MAH series pumps are heavy duty horizontal slurry pumps designed to handle the transfer of abraisive and high density slurries in minging and heavy industry.

Send InquiryChat Now
Product Details

Horizontal High Efficiency Mine Dewatering Slurry Pump

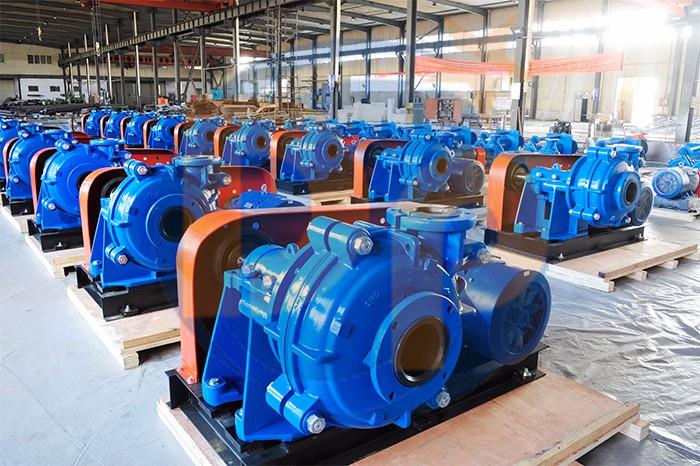

Mine Dewatering Slurry Pump.jpg

Product Description:

Depon MAH series pumps are heavy duty horizontal slurry pumps designed to handle the transfer of abraisive and high density slurries in minging and heavy industry.
All Depon MAH slurry pumps are designed to be interchangeable with the most common slurry pump footprints used by the mining industry.
MAH pumps are manufactured using the highest quality materials to ensure reliability and extended service life in heavy duty applications.


Technical Data:

Usage Slurry, sewage and water
Capacity0- 3600m³/h
Head0-112m
Speedup to 3200r/min
Inlet/ouetlet SizeDN25mm-DN350mm
Max Temperature110ºC
DriveElectric or diesel


Features:

Open Impeller Slurry Pump.jpg

1. Bearing assembly:  large diameter shaft with short overhang contributes to long bearing life.
2. Liners:  Easily replaceable liners are bolted, not glued to the casing for positive maintenance.
3. Casing:  Casing halves of cast or ductile iron provide high operating pressure capabilities.
4. Impeller:  Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
5. Throatbush:  Wear is reduced and maintenance simplified by the use of tapered.

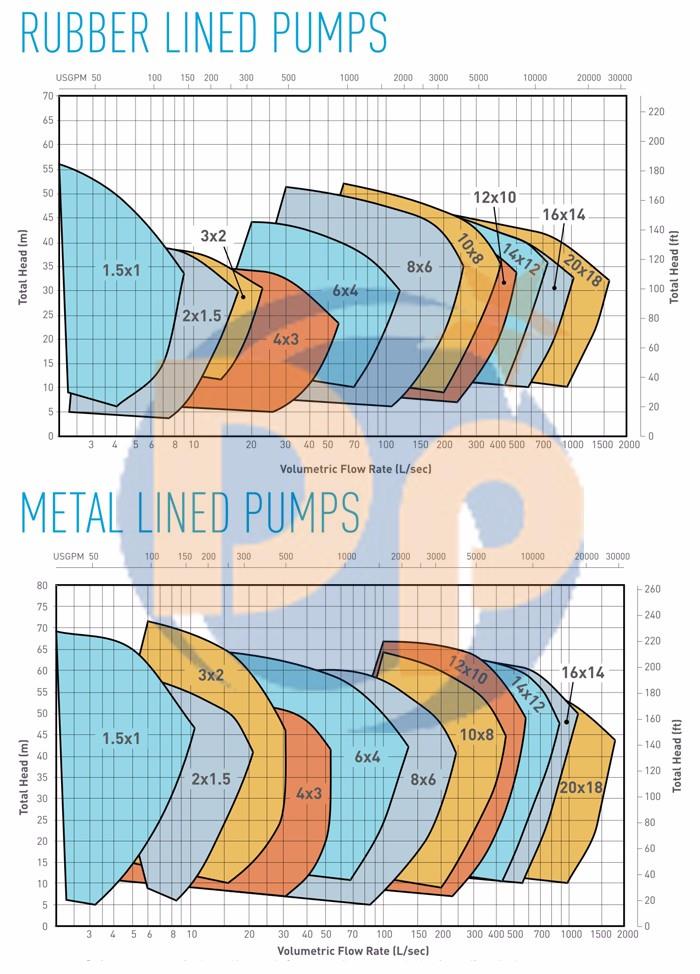

Performance Curve:

Wet Parts Replaceable Slurry Pump.jpg

Selection Chart and Performance:


TYPEAllowable
Mating
Max.
power(KW)
MaterialClear Water PerformanceImpeller
LinerImpellerCapacityHead(H)Speed(n)Max.EffNPSHImpeller
Dia.
(m³/h)(L/s)(m)(r/min)(%)(m)(mm)
1.5/1B-MAH15MM12.6-28.83.5-86-681200-3800402-4152
RURU10.8-25.23-77-521400-340035
1.5/1C-MHH30MM16.2-34.24.5-9.525-921400-2200202-5.5330
2/1.5B-MAH15MM32.4-729-206-581200-3200453.5-8184
RURU25.2-547-155.5-411000-2600502.5-5178
3/2C-MAH30MM39.6-86.411-2412-641300-2700554-6214
RURU36-75.610-2113-461300-2300602-4213
3/2D-MHH60MM68.4-136.819-3825-87850-1400473-7.5457
4/3C-MAH30MM86.4-19824-559-521000-2200714-6245
RURU79.2-18022-505-34.5800-1800593-5
4/3E-MHH120MM126-25235-7012-97600-1400502-5508
6/4D-MAH60MM162-36040-10012-56800-1500655-8365
RURU144-32440-9012-45800-1350653-5365
6/4S-MHH560MM324-72090-20030-118600-1000643-8711
6S-MHH560MM468-1008130-28020-94500-1000654-12711
8/6E-MAH300MM360-828100-23010-61500-1140722-9510
RURU324-72090-2007-49400-1000655-10510
10/8E-MM120MM666-1440185-40010-60600-1100734-10549
10/8ST-MAH560MM612-1368170-38011-61400-850714-10686
RURU540-1188150-33012-50400-750754-12
12-10ST-MAH560MM936-1980260-5507-68300-800826762
RURU720-1620200-4507-45300-650802.5-7.5
14/12ST-MAH560MM1260-2772350-77013-63300-600773-10965
RURU1152-2520320-70013-44300-500793-8
16/14TU-MAH1200MM1368-3060380-85011-63250-550794-101067
20/18TU-MAH1200MM2520-5400700-150013-57200-400855-10   1370


Pump Parts Material:

Metal Lined PumpsRubber Lined Pumps
Part DescriptionMaterial SpecificationPart DescriptionMaterial Specification
BaseCast IronBaseCast Iron
Shaft4140 High Tensile Steel Shaft4140 High Tensile Steel
Bearing AssemblyTimken(Cast Iron Body) Bearing AssemblyTimken(Cast Iron Body)
Shaft Sleeve420 Stainless SteelShaft Sleeve420 Stainless Steel
pump CasingCast Ironpump CasingCast Iron
Frame Plate Liner27% Chrome White IronFrame Plate Liner InsertRubber
Volute Liner27% Chrome White IronCover Plate LinerRubber
Impeller27% Chrome White IronImpellerRubber Coated High Tensile Steel
Throat Bush27% Chrome White IronThroat BushRubber
Joint RingRubberCover PlateCast Iron
Cover PlateCast IronStuffing BoxCast Iron
Stuffing BoxCast IronExpeller27% Chrome White Iron
Expeller27% Chrome White IronExpeller RingNatural Rubber
Expeller RingNatural RubberBoltsZinc Plated Steel
BoltsZinc Plated SteelO-ringsNitrile Rubber
O-ringsNitrile RubberSealsRubber
SealsRubber
