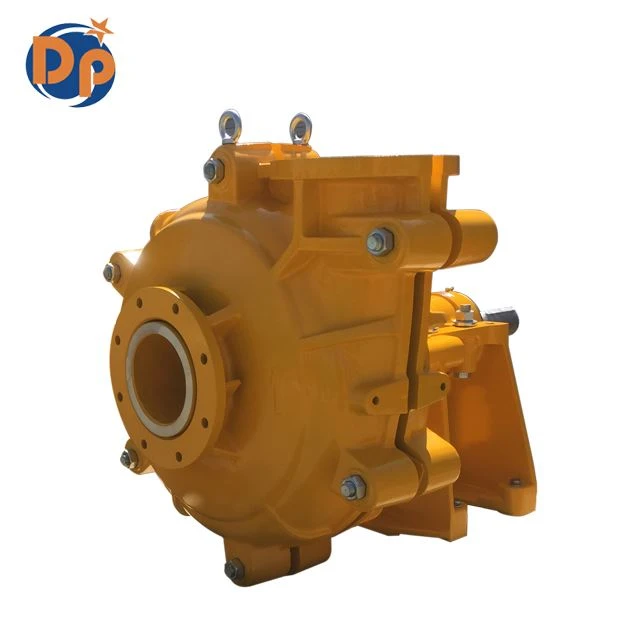

MAH Type slurry pump supplier
Product features
MAH is a new type of high efficiency, energy saving, anti-corrosion and wear-resistant pump. In hydraulic design, structural design and wear-resistant materials, this series of pumps absorb and innovate the advantages of similar products at home and abroad. It has the characteristics of high efficiency and energy saving, low vibration, low noise, reliable operation, long service life and convenient maintenance. The comprehensive performance of the pump is at the leading level in China, and the efficiency index of most pumps is at the international advanced level. The pump can be widely used in electric power, metallurgy, coal, building materials and other industries to transport slurry containing solid particles. Such as: hydraulic ash removal in thermal power plant, slurry transportation in metallurgical concentrator, slurry and dense medium transportation in coal preparation plant, etc. The maximum weight concentration of slurry is 45% for ash (slag) slurry and coal slurry, and 60% for ore slurry and heavy medium.
Technical parameters
Diameter: 25 ~ 600 (mm)
Flow: 5~ 3600 (m3 / h)
Lift: 5.5 ~ 150 (m)
Max. temperature: 110℃
Drive: electric / diesel engine
Pump Parts Material
| Metal Lined Pumps | Metal Lined Pumps | Rubber Lined Pumps | Rubber Lined Pumps |
| Part Description | Material Specification | Part Description | Material Specification |
| Base | Cast Iron | Base | Cast Iron |
| Shaft | 4140 High Tensile Steel | Shaft | 4140 High Tensile Steel |
| Bearing Assembly | Timken(Cast Iron Body) | Bearing Assembly | Timken(Cast Iron Body) |
| Shaft Sleeve | 420 Stainless Steel | Shaft Sleeve | 420 Stainless Steel |
| pump Casing | Cast Iron | pump Casing | Cast Iron |
| Frame Plate Liner | 27% Chrome White Iron | Frame Plate Liner Insert | Rubber |
| Volute Liner | 27% Chrome White Iron | Cover Plate Liner | Rubber |
| Impeller | 27% Chrome White Iron | Impeller | Rubber Coated High Tensile Steel |
| Throat Bush | 27% Chrome White Iron | Throat Bush | Rubber |
| Joint Ring | Rubber | Cover Plate | Cast Iron |
| Cover Plate | Cast Iron | Stuffing Box | Cast Iron |
| Stuffing Box | Cast Iron | Expeller | 27% Chrome White Iron |
| Expeller | 27% Chrome White Iron | Expeller Ring | Natural Rubber |
| Expeller Ring | Natural Rubber | Bolts | Zinc Plated Steel |
| Bolts | Zinc Plated Steel | O-rings | Nitrile Rubber |
| O-rings | Nitrile Rubber | Seals | Rubber |
| Seals | Rubber |
Further required feel free to contact with us.
