Multistage Centrifugal Hot Water Pump (D & DG)

D主图

Basic Info

  • Model NO.: D & DG

  • Assembly: Booster Pump

  • Start Up: Electric Pump

  • Application: Clarified Water Pump

  • Media: Sea Water Pump

  • Theory: Centrifugal Pump

  • Pressure or Delivery Head: 50m-1100m

  • Speed: 1450rpm or 2900rpm

  • Temperature: 0 Centi-Degree-110 Centi-Degree

  • Frequency: 50Hz/60Hz

  • Trademark: DE PUMP

  • Origin: Hebei

  • Structure: Multistage Pump

  • Power: Electric

  • Type: Blade Pump

  • Flow Rate: 3m3/H-300m3/H

  • Motor Power: 4kw-1300kw

  • Inlet/Outlet: 40mm-300mm

  • Voltage: 380V/400V/415V

  • Color: Customerized Making

  • HS Code: 8413709990

Product Description

Multistage Centrifugal Water Pump
1)-Specifications
1. Horizontal and compact structure
2. Cartridge mech. Seal structure
3. Wet parts are stainless steel

4. Lower noise, less vibration5. High-efficiency, energy-saving, wide performance range, operating safety&steady, low noise, long life and convinent installation.


2)-General introduction:
This serial pump is multi-stage section centrifugal pump, the excellent hydraulic models are high-efficiency, energy-saving, and have wide performance range, operating safety&steady, low noise, long life and installing&repairing is very convenient etc. It can deliver heat water, oil, corrosive or wearalbe medium by changing the material, seal or adding cooling system.
Type DM pump can deliver the neuter mineral water which solid particles percent <1.5%(solid Dia, <0.5mm) and other similar sewage, the temperature of the liquid is <80° C. It is suitable for steel works, mines, cities projects etc.
Type DF pump can deliver the corrosive liquid without solid particle, which temperature is from -20° C-150° C
Type DY pump deliver oil or oil products without solid grain, viscosity <120ct, range of temperature is from -20 ° C to 150 ° C
Inlet pressure of pumps is less than 0.6Mpa

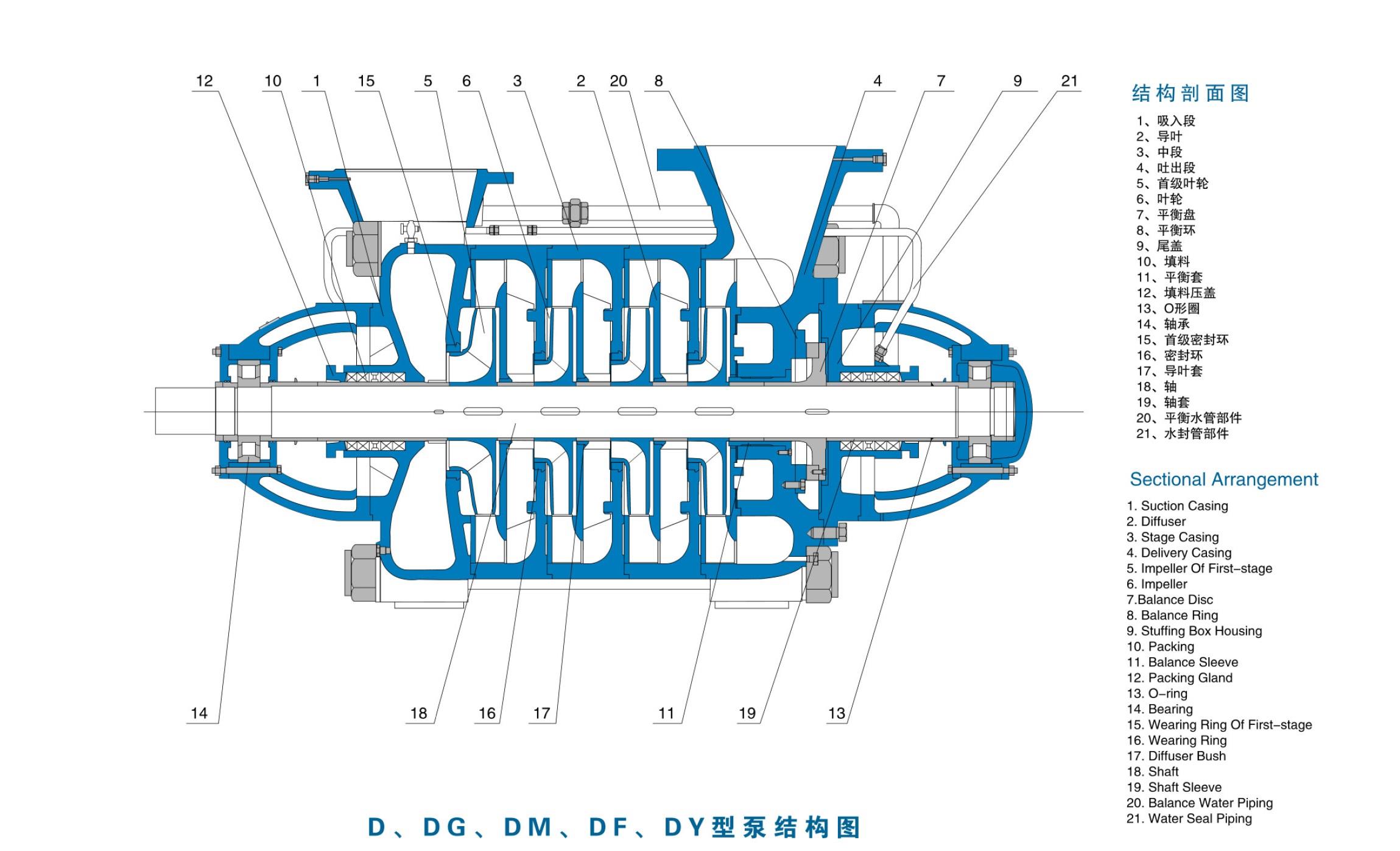

3)-CONSTRUCTION
Type DF/DM/DY is consist of stator, rotator, bearing, shaft seal:
1. Stator: The main parts are suction casing, stage casing, discharge casing and diffuser. They are screw up by poles, to become a working house. The suction direction of type D pump is horizontal, the discharge direction is upward; The discharge and suction direction of type DG pump are both upwards, and the suction direction is horizontal usually, also they can be made upward according to user's requirement.
2. Rotor: It is consist of sharft, impellers, balance dic and shaft sleeve etc. Shaft supplied power to impellers; The axial force is balanced by balance disc; The sleeve mounted on shaft to protect shaft.
3. Bearing parts: It is consist of bearing body, bearing and bearing cover etc. The bearing of type 85-67, 155-67, 600-60 pump is sliding bearing, lubricated by diluted oil, the other pump bearing is rolling bearing, lubricated by grease.
4. Shaft seal: It is usually adopted soft packing seal, consist of sealing house on suction casing, packing, blocking water ring, the sealing hose have some pressure water, to cool, lubricate and seal pump. Type D pump pressure water is come from pump itself, type DG, DM, DF, DY pump pressure water is come from pump itself or outer water. Type DG, DF, DM, DY pump usually adopt mechanical seal.

Drive: The pump is driven directly by motor through elastic coumpling, the rotation of pump is clockwise looking from motor to pump.

high pressure Cast Iron Multistage Diesel Engine Booster Water Pump

4)-DESCRIPTION OF SELECTING PUMP
1. Pump performation see sheet of performance data. The data in sheet is test performance at 1 atmosphere&nomal temperature&clean water, when the medium is high viscosity, the performance should be transormed.
2. The pump type, data, and gravity, temperature, viscosity, corrosive feature tec, must be stated in the order.

3. If you requried data is different from the data in sheet of performance Data, our company also can design according to your requirement.


Multistage water pump performance Curve

specification and performance parameter
ModelCapacity(m3/H)Head (M)Power(KW)Rotary speed(rpm)
6-25x37.573.55.52950
25-30x730192.5302950
46-30x35581222950
46-50x650288752950
80-30x32610218.52950
80-30x1048278552950
155-67x91855314402950
45-80x7624771602950
85-80x8856402902950
for more detailed specification and performance data , please contact us directly by email or call.

Welcome inquiry!

High capacity water pump
