Slurry pump is a kind of centrifugal pump with high efficiency and relatively strong performance, which is evolved from the large particles of material transportation.
Sludge slurry transfer pumps slurry pump
-Slurry pump accessories commonly used high chromium alloy vulnerable parts are: impeller, sheath, rear guard.
-Commonly used rubber vulnerable parts of slurry pump are impeller, front sheath and rear sheath.
-The common vulnerable parts of metal slurry pump and rubber slurry pump are: shaft sleeve, packing gland, decompression cover, auxiliary impeller, water seal ring, shaft, bearing and other common accessories.
-The common durable parts of metal slurry pump and rubber slurry pump are: pump body and pump cover.
-The horizontal slurry pump is a cantilever centrifugal slurry pump, which is suitable for conveying abrasive or corrosive slurry. It is widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering departments

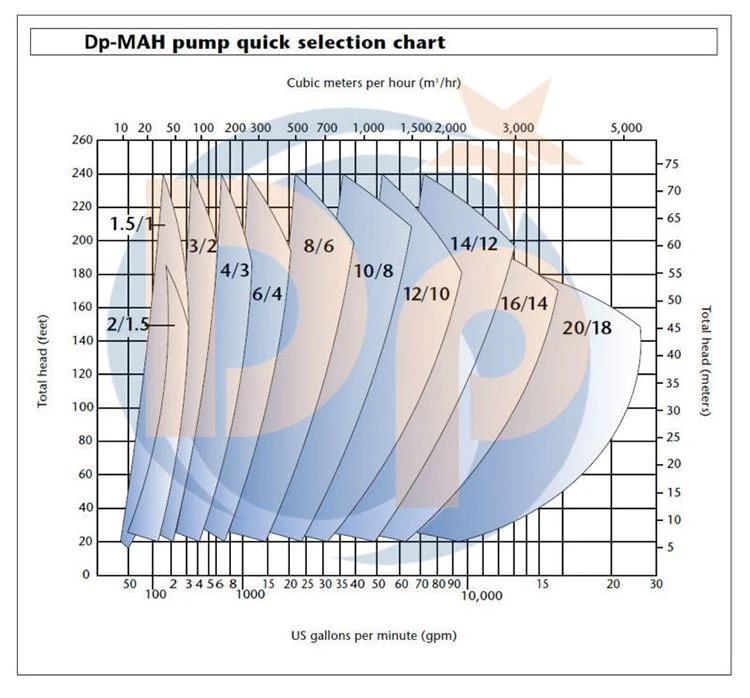

Selecting chart
| TYPE | Allowable Mating Max. power(KW) | Material | Clear Water Performance | Impeller | |||||||
| Liner | Impeller | Capacity | Head(H) | Speed(n) | Max.Eff | NPSH | No.of Vanes | Impeller Dia. | |||
| (m³/h) | (L/s) | (m) | (r/min) | (%) | (m) | (mm) | |||||
| 1.5/1B-MAH | 15 | M | M | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 |
| RU | RU | 10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 | 3 | ||||
| 1.5/1C-MHH | 30 | M | M | 16.2-34.2 | 4.5-9.5 | 25-92 | 1400-2200 | 20 | 2-5.5 | 5 | 330 |
| 2/1.5B-MAH | 15 | M | M | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 |
| RU | RU | 25.2-54 | 7-15 | 5.5-41 | 1000-2600 | 50 | 2.5-5 | 5 | 178 | ||

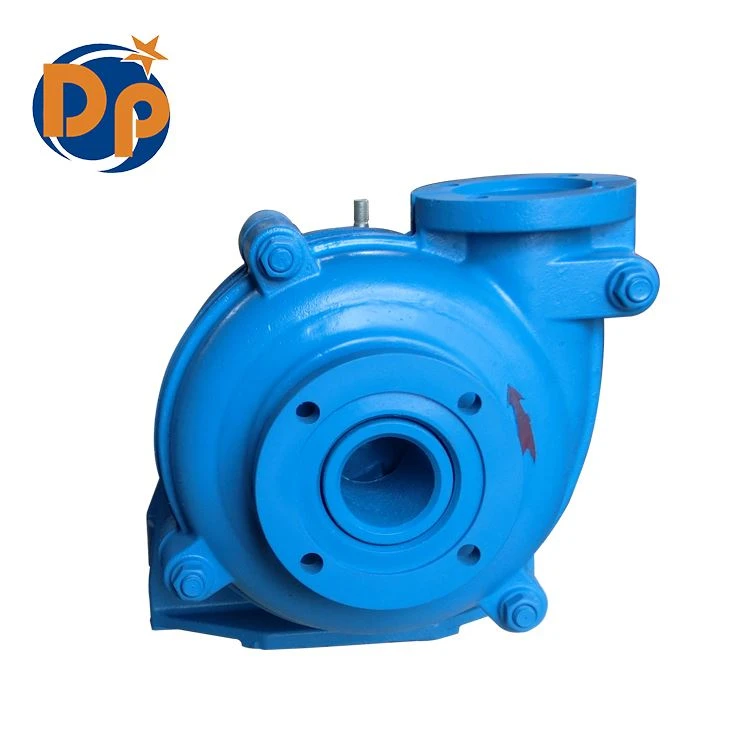

| 3/2C-MAH | 30 | M | M | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 |
| RU | RU | 36-75.6 | 10-21 | 13-46 | 1300-2300 | 60 | 2-4 | 5 | 213 | ||
| 3/2D-MHH | 60 | M | M | 68.4-136.8 | 19-38 | 25-87 | 850-1400 | 47 | 3-7.5 | 5 | 457 |
| 4/3C-MAH | 30 | M | M | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 |
| RU | RU | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 3-5 | 5 | |||
| 4/3E-MHH | 120 | M | M | 126-252 | 35-70 | 12-97 | 600-1400 | 50 | 2-5 | 5 | 508 |
| 6/4D-MAH | 60 | M | M | 162-360 | 40-100 | 12-56 | 800-1500 | 65 | 5-8 | 5 | 365 |
| RU | RU | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-5 | 5 | 365 | ||
| 6/4S-MHH | 560 | M | M | 324-720 | 90-200 | 30-118 | 600-1000 | 64 | 3-8 | 5 | 711 |
| 6S-MHH | 560 | M | M | 468-1008 | 130-280 | 20-94 | 500-1000 | 65 | 4-12 | 5 | 711 |
| 8/6E-MAH | 300 | M | M | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 |
| RU | RU | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5-10 | 5 | 510 | ||
| 10/8E-MM | 120 | M | M | 666-1440 | 185-400 | 10-60 | 600-1100 | 73 | 4-10 | 5 | 549 |
| 10/8ST-MAH | 560 | M | M | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 |
| RU | RU | 540-1188 | 150-330 | 12-50 | 400-750 | 75 | 4-12 | 5 | |||
| 12-10ST-MAH | 560 | M | M | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 5 | 762 |
| RU | RU | 720-1620 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | 5 | |||
| 14/12ST-MAH | 560 | M | M | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 |
| RU | RU | 1152-2520 | 320-700 | 13-44 | 300-500 | 79 | 3-8 | 5 | |||
| 16/14TU-MAH | 1200 | M | M | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 |
| 20/18TU-MAH | 1200 | M | M | 2520-5400 | 700-1500 | 13-57 | 200-400 | 85 | 5-10 | 5 | 1370 |
