Slag slurry pump is an important conveying equipment of medium and slime water in coal preparation plant. Its selection and design is directly related to the operation of coal preparation process system, and it is the key point for the normal operation of medium system and slime water system.

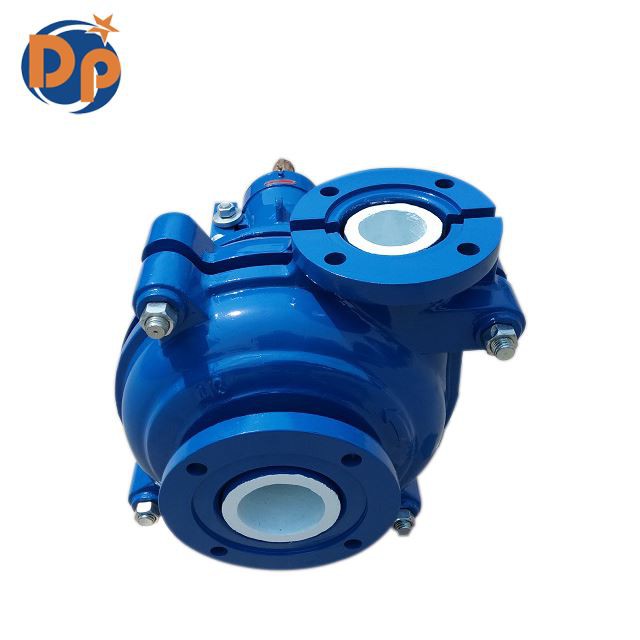

Slurry Transfer Pump For Coal Preparation Plant
Pump specification
Pump type: 4/3C-MAH
Quantity(volume): 80m3/h 22.2L/S
Head: 2m
Speed: 980rpm
Drive type: V-belt
Power: 5.5kw
Concentration: 250g/l
Corn size max.: 8mm
Average: 4mm
NPSH: 2m
More parameters
Performance Of DP-MAH SLURRY PUMP | |||||
Type | Max. | Capacity | Head | Impeller | Max. |
Quantity | |||||
kw | (m³/h) | (m) | (mm) | ||
1.5x1B-MAH | 15 | 3.6-21.6 | 6-65 | 5 | 14 |
1.5x2B-MAH | 15 | 7.2-48.6 | 5-62 | 5 | 19 |
2x3C-MAH | 30 | 21.6-88.56 | 15-40 | 5 | 21 |
4x3C-MAH | 30 | 28.8-158.4 | 7-53 | 5 | 28 |
6x4D-MAH | 60 | 72-331.2 | 11-64 | 5 | 44 |
8x6E-MAH | 120 | 126-720 | 6-62 | 5 | 63 |
10x8ST-MAH | 560 | 216-1051.2 | 9-64 | 5 | 76 |
12x10ST-MAH | 560 | 316.8-1620 | 10-66 | 5 | 86 |
14x12ST-MAH | 560 | 504-2455.2 | 10-75 | 5 | 90 |
Success series
Product transport
Our certificates
Our services
1. Processing with supplied drawing
2. Processing with supplied samples
3. Produce all kinds of anti abrasive spare parts except for pump
4. Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.
FQA
Q: How can I make order online?
A: Send email or skype us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 sets.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, MoneyGram
Q: Which shipping terms are available?
A: By sea, DHL, TNT( express for spare parts)
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money.Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery
Q: Can I buy parts separately?
A: Yes,all of the parts can buy separately.
