Submersible Gravel Pump In Centrifugal Type

Submersible Gravel Pump In Centrifugal Type

Submersible Dredging Pump for Dredger Boat The Depump® SS series submersible slurry pump is a kind of hydraulic mechanism which motor connects directly with pump. It is used for delivering liquid contained sand, coal conder solid etc.. The pump can be mainly employed in clearing the mud in lake,...

Send InquiryChat Now
Product Details

Submersible Gravel Pump in Centrifugal type

Submersible Slurry Pump

The Depump® SS series submersible slurry pump is a kind of hydraulic mechanism which motor connects directly with pump. It is used for delivering liquid contained sand, coal conder solid etc.. The pump can be mainly employed in clearing the mud in lake, river, sea and widening channel etc. It also can be applied to clear out sewage pool; in building site, steel wokrs and power station and so on, the pump adopts excllent material, advanced structure, and it is with wide flowing passage & strong delivery ability. The hydraulic parts are wear-resistant. The pump is completed with control unit.

Submersible sand pump

Submersible dredging pump

Features



1 Submersible work without influence of suction head;

2 No assistant vacuum pump, save invest;

3 No noise, keep the silence of work station;

4 With agitator, no need extra stirring devices, more convenience for operating;

5 It need not build pump house.

6 Directly work on the surface of slurry, with higher efficiency to deliver slurry.


Submersible slurry pump spares

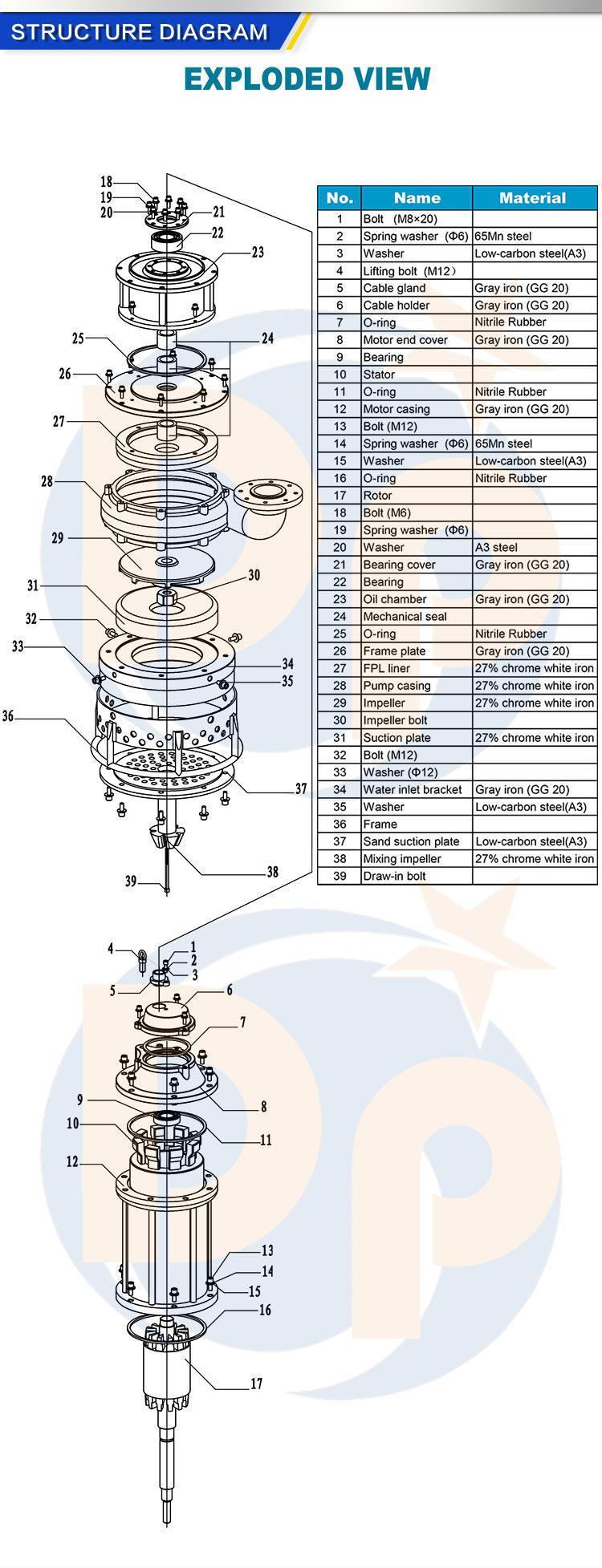

Submersible pump structure

Model

Capacity

 (m3/h)

Head (m)

Motor Power (kw)

Speed (RPM)

Max.solid

Dia.(mm)

SS30-30-7.5

30

30

7.5

2850

7

SS50-26-11

50

26

11

1460

21

SS50-30-11

50

30

11

1460

19

SS70-20-11

70

20

11

980

24

SS100-18-11

100

18

11

1460

21

SS25-40-11

25

40

11

1480

13

SS150-15-15

150

15

15

980

32

SS40-40-18.5

40

40

18.5

1480

13

SS100-25-18.5

100

25

18.5

980

24

SS38-45-18.5

38

45

18.5

980

13

SS60-34-18.5

60

34

18.5

970

13

SS90-30-18.5

90

30

18.5

980

24

SS150-22-22

150

22

22

950

31

SS200-15-22

200

15

22

950

44

SS60-46-22

60

46

22

980

13

SS100-35-30

100

35

30

980

34

SS150-30-30

150

30

30

980

35

SS240-20-30

240

20

30

980

40

SS100-50-37

100

50

37

1480

24

SS140-40-37

140

40

37

1480

24

SS300-20-37

300

20

37

980

69

Submersible pump cases

Submersible Pumps
