DEPUMP SS Submersible Slurry Pumps are available in 72 different models in sizes ranging from 80mm to 400 mm (3.15-16 inches) discharge and are capable of flow rates up to 2400 cubic metres per hour (100-10560UGPM).

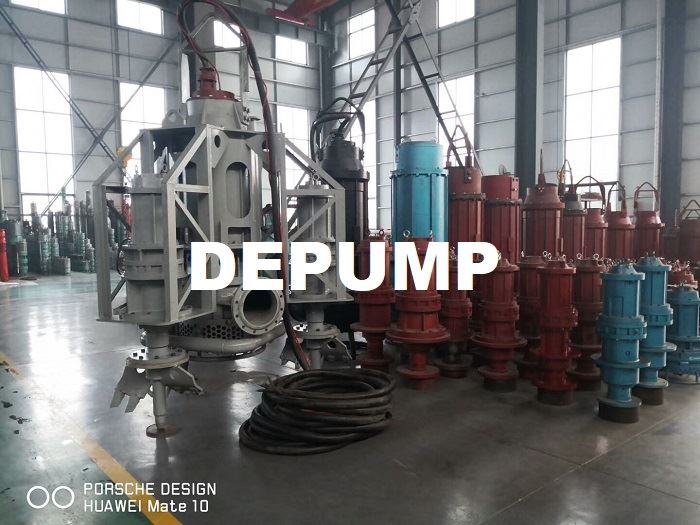

Submersible sand dredger pump with agitators
DOUBLE MECHANICAL SEAL
A double mechanical seal provides excellent shaft sealing between the electric motor and wet end. The seals are oil bath lubricated and feature carbon/ceramic seal faces in the wet end and tungsten ceramic faces in the drive end to provide excellent durability and service life across a wide range of duties and applications.
OIL CHAMBER LEAKAGE PROBE The oil chamber incorporates a water leakage probe which detects when the water-to-oil ratio is too high and automatically shuts down the motor to prevent damage.
MOTOR FLOAT SWITCH A float switch is located in the bottom of the motor to detect the ingress of water and shut down the motor to prevent damage due to shorting out.
MOTOR TEMPERATURE SENSORS
Temperature sensors are located in the motor stator to detect excessive temperatures and can shut down the motor to prevent damage due to overheating.
THRUST BEARING SENSORS
Temperature and moisture sensors are located in the motor thrust bearings to detect excessive temperatures and the ingress of water and shut down the motor to prevent bearing failure.
OPTIONAL EXTERNAL COOLING
Cooling jackets can be provided with external water supply in high temperature applications to keep motor temperature down and prevent excessive stator and bearing damage.
Kindly provide the pump head and capacity you want, we will recommend a model to you with our best price.
