QJ series water submersible pump is a vertical, centrifugal, multi-stage submersible pump.This pump is a main tool for lifting water from deep well for town and countryside,industrial and mineral industries and agriculture
Product Description
QJ series water submersible pump is a vertical, centrifugal, multi-stage submersible pump.This pump is a main tool for lifting water from deep well for town and countryside,industrial and mineral industries and agriculture
Application
1. Deliver deep well water
2. Irrigation
3. Drink for life
4. Wast water dewatering and etc.

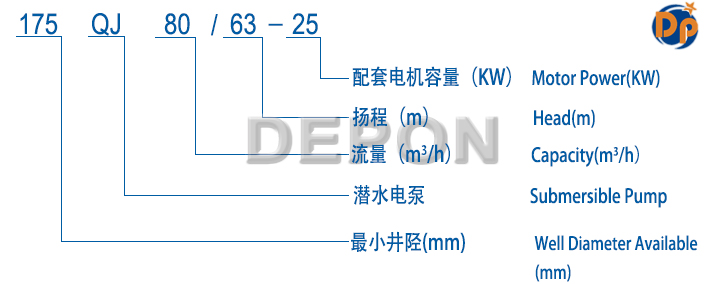

Model Meaning

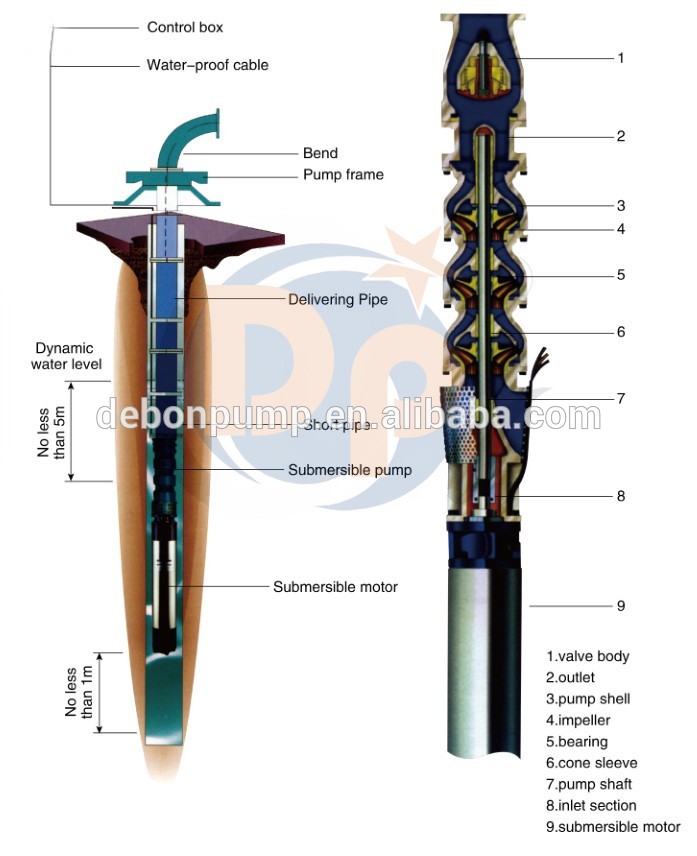

Structure Of Pump
Performance Curve
Performance Table
Model | Capacity(m³/h) | Head(m) | Speed | Motor Power | Outlet diameter(mm) | Max Outside Diameter(mm) |
100QJ3.2-54 | 3.2 | 54 | 2850 | 1.5 | 40 | 95 |
100QJ5-86 | 5 | 86 | 2850 | 3 | 40 | 95 |
100QJ10-50 | 10 | 50 | 2850 | 3 | 50 | 95 |
125QJ10-104 | 10 | 104 | 2850 | 7.5 | 50 | 122 |
125QJ15-60 | 15 | 60 | 2850 | 5.5 | 50 | 122 |
125QJ20-102 | 20 | 102 | 2850 | 11 | 50 | 122 |
125QJ30-50 | 30 | 50 | 2850 | 7.5 | 80 | 122 |
135QJ10-150 | 10 | 150 | 2850 | 9.2 | 50 | 133 |
150QJ5-450/45 | 5 | 450 | 2850 | 15 | 40 | 143 |
175QJ32-221/17 | 32 | 221 | 2850 | 37 | 80 | 168 |
200QJ20-600/45 | 20 | 600 | 2850 | 63 | 50 | 184 |
