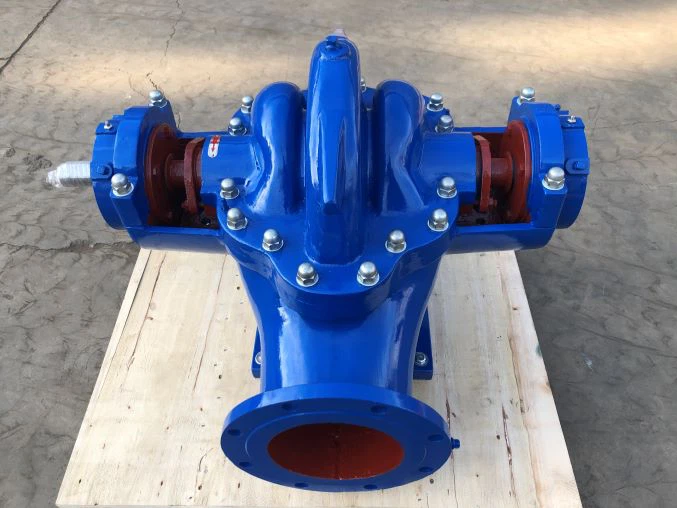

Double suction pump is a series of centrifugal pump. This issue focuses on the MS and XS series. Also a single stage impeller. Mainly used for convening clean water without solid particles.
Application:
Used in factories, mines, urban water supply and drainage, power stations, farmland and other water conservancy projects.
|
|
MS |
XS |
|
Discharge(mm) |
150-1000 |
80-1000 |
|
Flow |
200-15000m3/h |
50-16236m3/h |
|
Head |
8.6-140m |
7-300 |
|
Temperature |
-20℃~200℃ |
|
|
Solid particle |
bit |
|
|
Pressure |
≤4Mpa |
≤5Mpa |
Frame plate structure characteristics:
1.Axial open, suction inlet and outlet are on the pump body, are perpendicular to the shaft.
2.Line plane, convenient pipeline layout ,easy maintenance.(Maintenance, disassemble the pump cover and rotor components, without removing the inlet and outlet water pipe and prime mover.)
Materials:
1.Cast iron(common) 2.Nodular cast iron(high pressure)
3.Cast steel(high temperature) 4.Stainless steel(abrasion resistance)
Seal type:
Gland packing:①Sample structure, easy replacement, low cost, range of applications.②Poor sealing performance, high power consumption, serious wear to the shaft or sleeve, short service life, frequent replacement③Applied range: there is no strict place to leak.
Mechanical seal:①The sealing state is very stable, the leakage is small, and the service life is long. On the shaft or shaft sleeve basic wear, good shock resistance.②Complex structure, high manufacturing precision, expensive price, maintenance is not convenient.③Applied range: it can be used for sealing low temperature, high temperature, vacuum, high pressure, different speed, and various corrosive media and abrasive media.
