The diesel engine double suction pump is widely used worldwide for its high flow, stable performance and independence from electricity. It combines a strong diesel engine with a professional double-suction pump structure.
The pump is powered by a diesel engine that drives the double-suction impeller to spin. Water enters the pump from both sides at the same time. Under the influnce of centrifugal force, water will be pushed to the outer edge and flows out through the discharge pipe. The double-sided inlet design balances axial force, making the pump run smoothly, reduce vibration and resist cavitation.

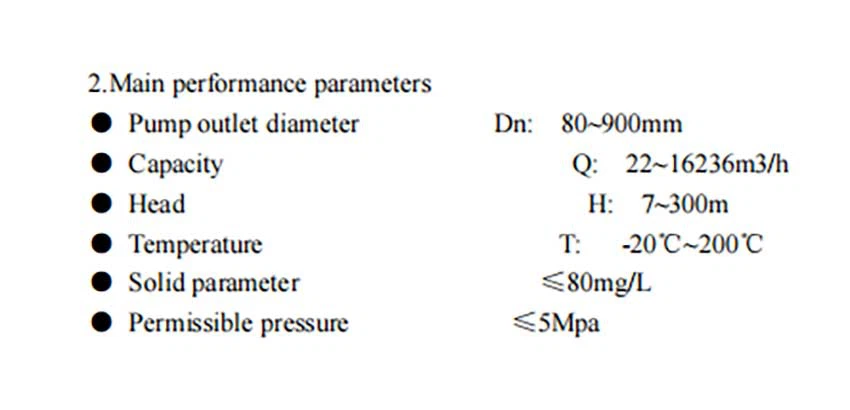

This diesel engine double suction pump covers a wide working range to meet different demands. Flow rate: 22–16236 m³/h. Head: 7-300 m. Suction lift can reach more than 5 meters. It matches high-quality diesel engines with 1500–3000 rpm. The pump body is made of strong cast iron for wear resistance and long service life.
It is widely used in many fields. In agriculture, the diesel engine double suction pump supports large-scale farm irrigation and water delivery. In industry, it works for water circulation, cooling systems and sewage discharge. For municipal use, it helps with urban water supply, flood control and drainage. It is also key for emergency rescue such as floods and power failures. It also serves mine drainage, water transfer and construction sites.
The biggest benefit is no need for electricity. It can work in remote areas and during power outages. Starting quickly and provides strong, stable power. Diesel fuel is easy to buy in most countries. The engine has high efficiency and low operating cost.

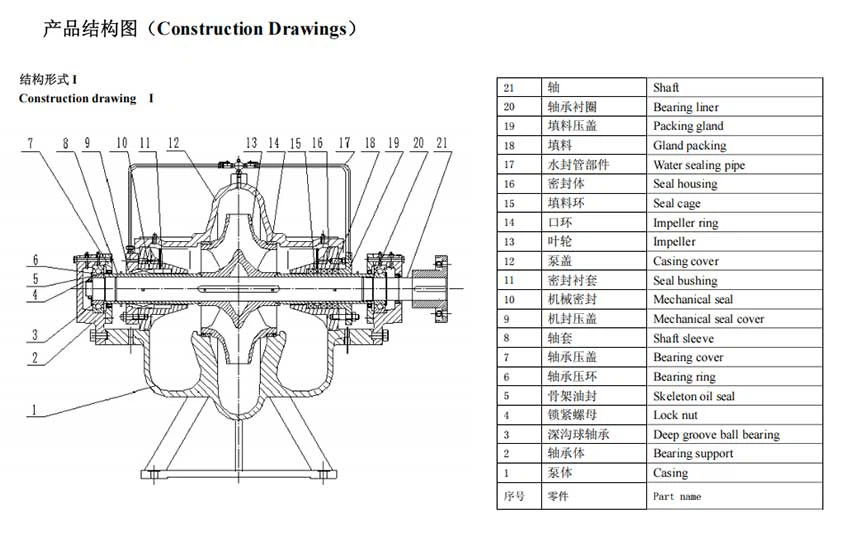

Double-side inlet brings larger flow in the same size. The balanced design reduces vibration and noise to protect bearings and extend life. It has better anti-cavitation performance. The horizontally split casing structure makes maintenance easy - you can open the cover without removing pipes.

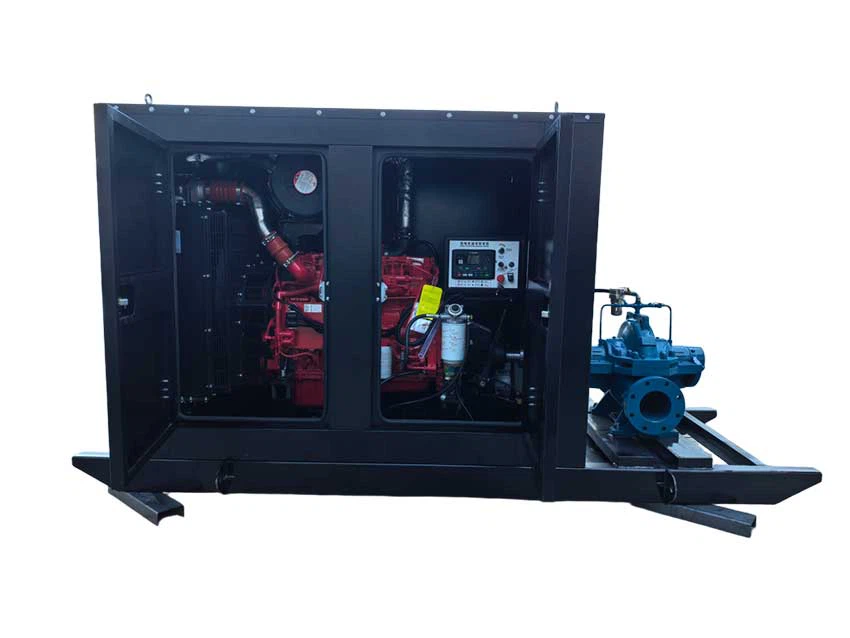

The diesel engine double suction pump set is mounted on a base frame. Installation is simple and does not need complex foundations. Many models are mobile with wheels or skids, so they can be moved easily between job sites.
