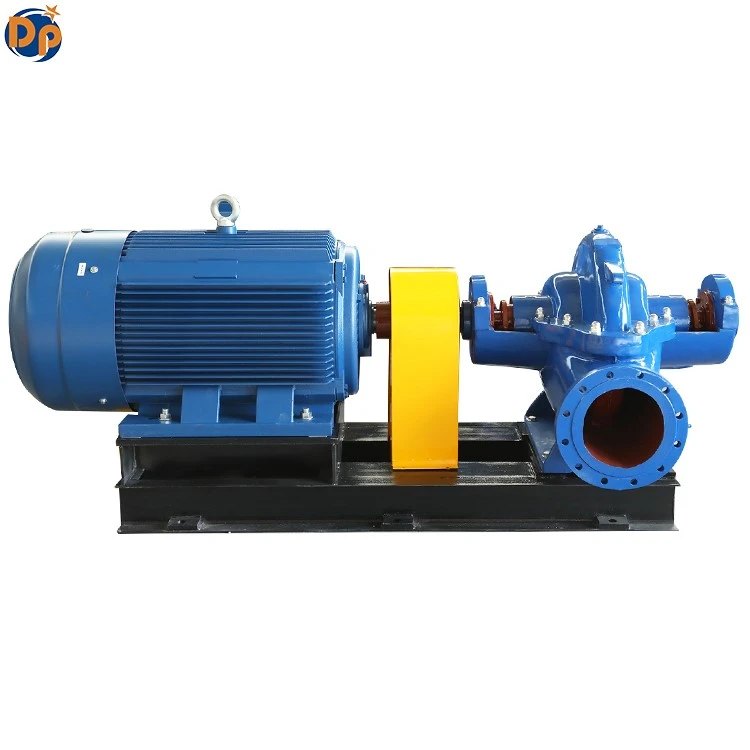

The Double Suction Water Pump

The double suction water pump is suitable for industrial and urban water supply, irrigation and garden sprinkler, fire fighting and so on. The double suction water pump is driven by diesel engine or electric motor. You can select one according to your preference.

Here is the construction of pump as follows:

There are some performance parameters of double suction water pump.

Pump outlet diameter: 80-900 mm

Flow: 22-1636 m3/h

Lift: 7-300 m

Temperature: -20℃-200℃

Solid parameter: ≤80 mg/L

Permissible pressure: ≤5 Mpa

Seal method: Mechanical seal/ gland packing

The advantage of double suction water pump:

High capacity. Compared to other water pump, the double suction water pump has a biggest advantage. It is high capacity because the water can pass from two absorption rooms. It can balance the pressure of double suction water pump.

Convenient maintenance: The inlet and outlet of pump place under the shaft. If you want to repair it, you can take out the cover only. It is more convenient than single suction pump.

If you have any interest, please do not hesitate to contact me.
