IS End Suction Centrifugal Clear Water Pump Electric Driven Diesel Engine Driven Introduction: Depon IS serial centrifugal water pumps are single stage suction cantilever centrifugal pumps. They are used to deliver clean water and the liquids of which the physical and chemical properties are similar to clean water. Application.

Send InquiryChat Now
Product Details


Horizontal End Suction Clean Water Pump

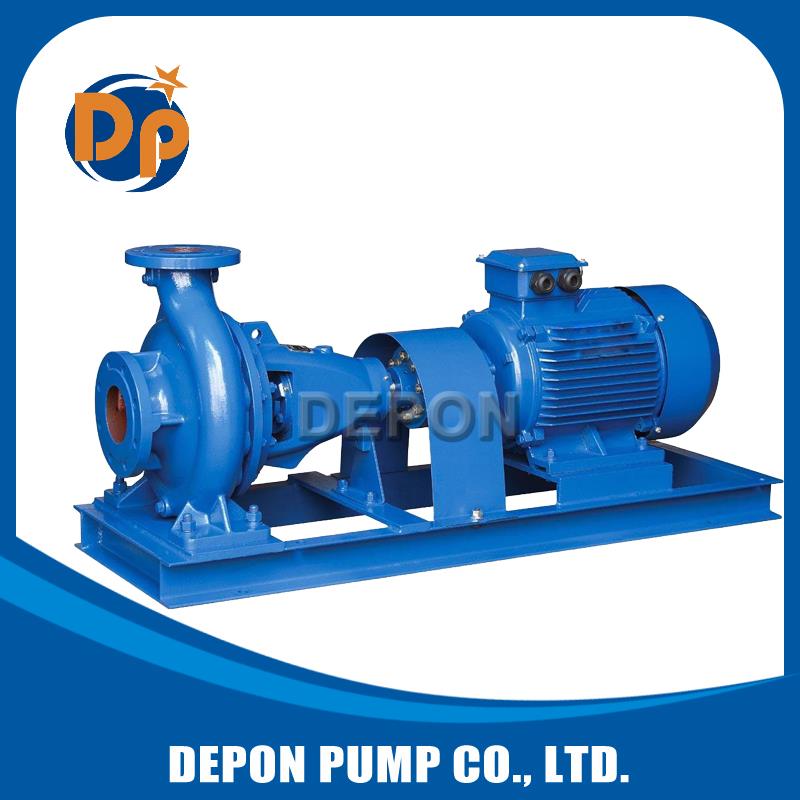

Horizontal end suction clean water spray pump

Description

Usage

Clean Water

Type

DP-IS End Suction Water Pump

Capacity

6.3-400m³/h

Head

5-125m

Speed

1450/2900rpm

Fluid Temperature

Up to 80℃

Casing or Cover

Cast Iron

Suction Diameter

50mm to 200mm

Sealing

Packing or Mechanical Seal

Shaft

Carbon Steel

Seal Ring

Cast Iron

Features


1Wide range of performance

2 high efficiency

3 high mechanical,chemical and physical level

4Convenient maintenanceand etc.

Application


1 chemical industry

2 petroleum

3 metallurgy

4 electric power

5 paper making etc.

Model Meaning

IH

Note: The impeller form consists of such five kinds as O, A, B, C and Z, respectively standing for:

O- Impeller prototype

A- Impeller OD cut for the first time

B- Impeller OD cut for the second time

C- Impeller OD cut for the third time

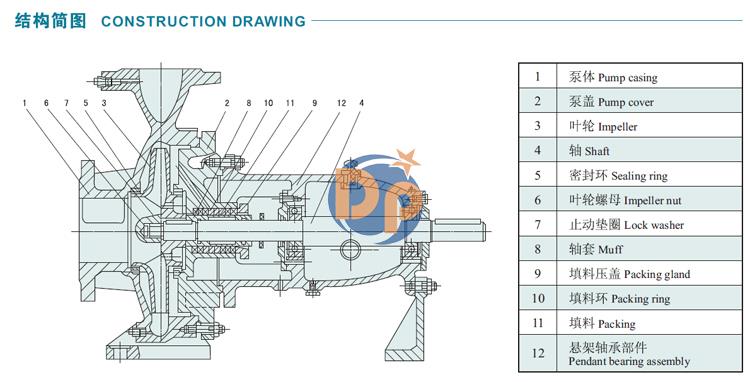

Structure Of Pump


IS

Performance Curve


IS
