IS65-50-160A Horizontal Single Stage End Suction Centrifugal Water Pump

IS65-50-160A Horizontal Single Stage End Suction Centrifugal Water Pump

IS series single-stage end-suction centrifugal pump is designed according to the capability and size stipulated in the international Standard ISO2858,it is composed of pump body, pump cover, impeller, shaft, ring seal, sleeve and suspended bearing units.

Send InquiryChat Now
Product Details

IS65-50-160A Horizontal Single Stage End Suction Centrifugal Water Pump

end suction clean water pump.jpg

Introduction

The Depon Is serial centrifugal water pumps are single suction cantilever centrifugal pumps. They are used to deliver clean water and the liquids of which the physical and chemical properties are similar to clean water.

Model meaning

Capacity:23.4m³/h;

Head:28m;

Speed:2900r/min;

Eff.:63%;

(NPSH)r:2.0m.

Application

1. Domestic water boosters;

2. Sprinkler/Firefighting;

3. Water treatment plants;

4. Chemical/Processing;

5. Food processing;

6. Irrigation.

Features

1. Simple in structure, easy maintenance and reliable performance;

2. High efficiency single stage;

3. Durable, low noise, long life bearing;

4. Premium quality mechanical seal;

5. Electric or diesel drive.

Structure Of Pump:

end suction water pump with electric motor.jpg

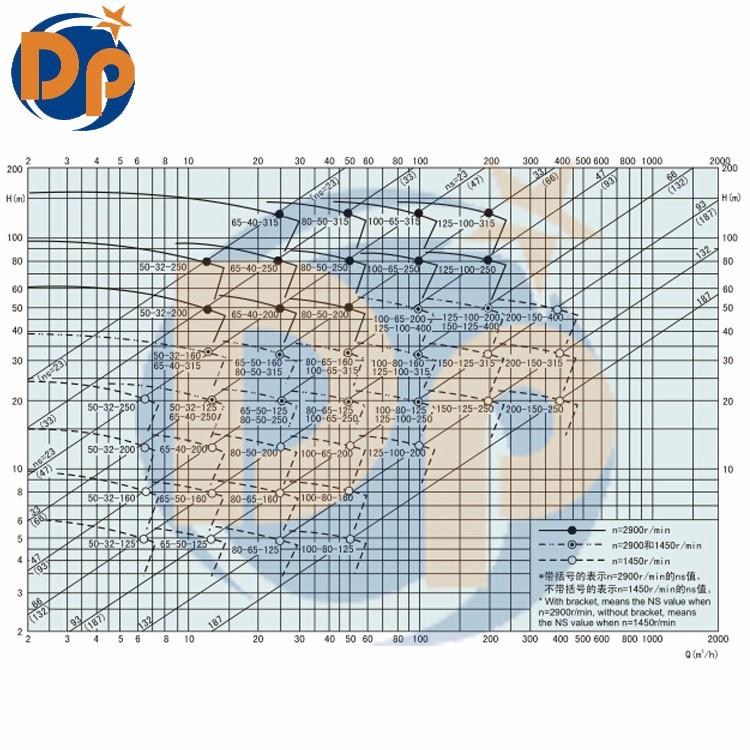

Performance Curve

end suction water pump for irrigation.jpg

Contact us

contact us.jpg

Other pumps

all kinds of pumps.jpg
