High Pressure Multistage Electric Water Pump Prices In Kenya

High Pressure Multistage Electric Water Pump Prices in Kenya,more selections of pump head, high head.

High Pressure Multistage Electric Water Pump Prices in Kenya

Diesel Water Pump.jpg

The Depump® series single-suction multistage centrifugal pumps is widely used system of high-pressure run hot and cold water circulation and booster pumps in parallel water supply of the high-rise building,fire, boiler feed water and cooling water systems and a variety of irrigation fluid conveying.

Pumps Drawing:

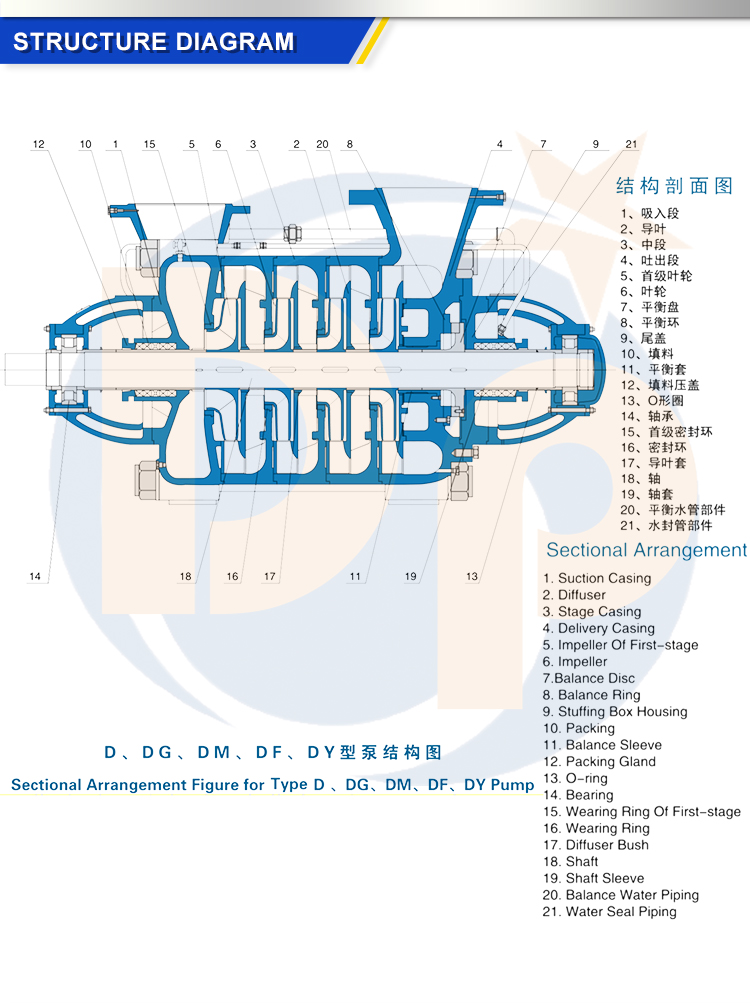

D PUMP STRUCTURE:

APPLICATION:

* Long distance water transferring

* Boiling water feeding and transferring

* Water system boosting

* Agricultural irrigation

* Mining water supply

* Fire fighting

* Offshore projects

PUMPS DATA SHEET:

Model	Capacity (m3/h)	Head(m)	Speed (rpm)	Motor Power (kw)	Impeller Dia (mm)
D/DG6-25*3	6.3	75	2950	5.5	138
D/DG6-25*5	6.3	125	2950	7.5	138
D/DG6-50*4	6.3	200	2950	18.5	198
D/DG6-50*6	6.3	300	2950	30	198
D/DG6-80*3	6.3	240	2950	18.5	235
D/DG12-25*4	12.5	100	2950	11	146
D/DG12-50*6	12.5	300	2950	30	273
D/DG12-80*4	12.5	320	2950	45	235
D/DG25-30*3	25	90	2950	15	160
D/DG25-50*5	25	250	2950	37	196
D/DG46-30*5	46	150	2950	37	162
D/DG46-50-7	46	350	2950	90	210
D/DG85-67*4	85	268	2950	110	235
D/DG85-67*8	85	536	2950	220	235
D/DG120-50*5	120	250	2950	132	213
D/DG150-30*8	150	240	2950	160	172
D/DG150-100*6	150	600	2950	400	289
D/DG200-100*6	200	600	2950	560	290
D/DG280-65*6	280	390	1480	500	430
D/DG360-40*8	360	320	1480	500	360
D/DG450-60*8	450	480	1480	900	430
D/DG550-50*9	550	450	1480	1000	430
D/DG580-70*9	580	630	1480	1600	473
D/DG600-60*10	600	600	1480	1400	455
D/DG720-60*9	720	540	1480	1600	450
D/DG740-80*6	740	480	1480	1600	493
