Mining Channel Dewatering Water Pump in Stainless Steel Material

Send InquiryChat Now
Product Details

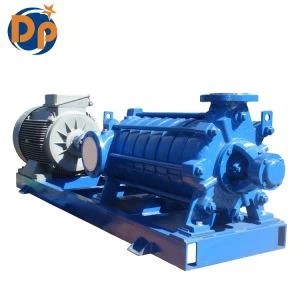

Mining Channel Dewatering Water Pump in Stainless Steel Material


Diesel Water Pump.jpg


*Type: D280-43x7


- Liquid medium:Water

- Capacity:280m3/h

- Head:300m

- Power:355kw

- Speed:1480rpm

- Stage:7

- NPSH:4.0m

- Efficiency:77%

- Brand: DePump

- Local: China

- Material: Cast Iron

- Shaft: 45# steel


Pumps Drawing:




D PUMP STRUCTURE:

multistage water pump.jpg


Sectional Arrangement


1Suction Casing
2Diffuser
3Stage Casing
4Delivery Casing
5Impeller of First-stage
6Impeller
7Balance Disc
8Balance Ring
9Stuffing Box Housing
10Packing
11Balance Sleeve
12Packing Gland
13O-ring
14Bearing
15Wearing Ring of First-stage
16Wearing Ring
17Diffuser Bush
18Shaft
19Shaft Sleeve
20Balance Water Piping
21Water Seal Piping


APPLICATION:


* Long distance water transferring

* Boiling water feeding and transferring

* Water system boosting

* Agricultural irrigation

* Mining water supply

* Fire fighting

* Offshore projects


PUMPS DATA SHEET:


ModelCapacity
(m3/h)
Head(m)Speed
 (rpm)
Motor Power
 (kw)
Impeller Dia
 (mm)
D/DG6-25*36.37529505.5138
D/DG6-25*56.312529507.5138
D/DG6-50*46.3200295018.5198
D/DG6-50*66.3300295030198
D/DG6-80*36.3240295018.5235
D/DG12-25*412.5100295011146
D/DG12-50*612.5300295030273
D/DG12-80*412.5320295045235
D/DG25-30*32590295015160
D/DG25-50*525250295037196
D/DG46-30*546150295037162
D/DG46-50-746350295090210
D/DG85-67*4852682950110235
D/DG85-67*8855362950220235
D/DG120-50*51202502950132213
D/DG150-30*81502402950160172
D/DG150-100*61506002950400289
D/DG200-100*62006002950560290
D/DG280-65*62803901480500430
D/DG360-40*83603201480500360
D/DG450-60*84504801480900430
D/DG550-50*955045014801000430
D/DG580-70*958063014801600473
D/DG600-60*1060060014801400455
D/DG720-60*972054014801600450
D/DG740-80*674048014801600493

For reference only, more details please contact us!


D Pump Performance Chart:

High pressure water pump.jpg


Pump will be tested before delivery:

Single Suction Multistage water pump.jpg

horizontal multistage water pump .jpg


Package:
