Type D/DG pump can deliver water without solid particle or the liquid which the chemical and physical feature are similar with water and temperature less than 105℃, it is suitable for delivering water in mine, boiler feed water, heat water and urban water project etc.
Scope of application:
Suitable for industrial and urban water supply and drainage, high-rise building charging water supply, garden sprinkler irrigation, fire booster, distant distance water delivery, heating, bathroom, etc, cold and hot water circulation pressurization and equipment matching, etc., especially suitable for small boiler feed water.
Product features:
1, hydraulic model is advanced, high efficiency, performance range.
2, pump smooth operation, low noise.
3, shaft seals use soft packing seal or mechanical seal, seal, and safe and reliable, simple structure, convenient maintenance.
4, shaft to all the seal structure, ensure the not contact with the media, no corrosion and long service life.
Specifications:
(1): Multistage Pump:

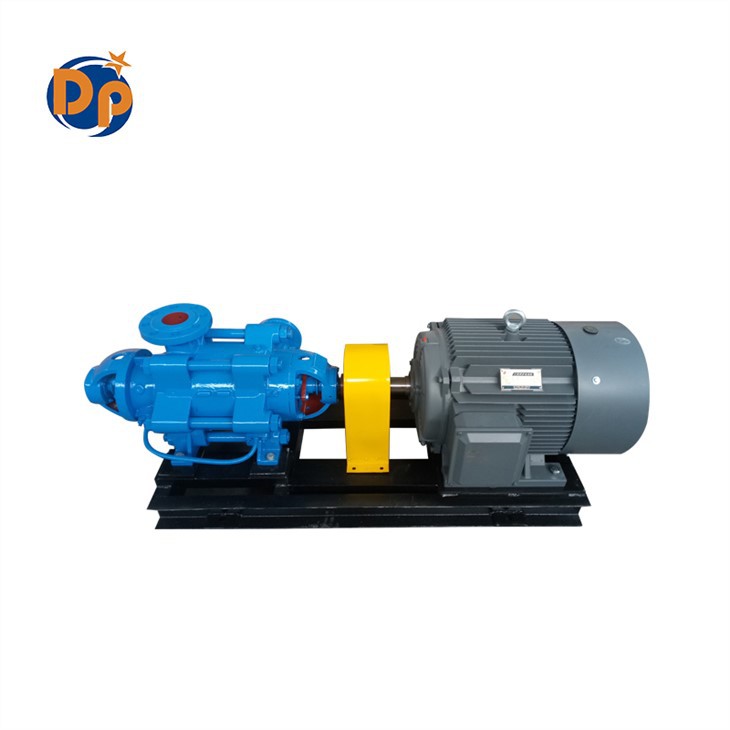

Model: DG25-80x6A
Inlet/ outlet size: DN80/DN65
Flow：20m3/h
Head: 600m
Shaft seal: Containerized mechanical seal
Shaft power: 96 kw
Temperature of conveying water: 160 Celcius
Pump Material:
Pump casing: Cast Steel
Impeller: Cast Steel
Shaft: 2Cr13
(2):
Electric motor
Mode: Y315S-2/110
Electric motor brand: Domestic
Voltage/frequency: 440v/60Hz/3phases
Electric motor power: 110 kw
Speed：3500 rpm
Maximum ambient temperature: 50℃
Recommended to install air conditioning at the project site
