Are you worried about the discharge of slurry? You will need this!
MSP HEAVY DUTY SUMP PUMP!
HEAVY DUTY SUMP PUMPING

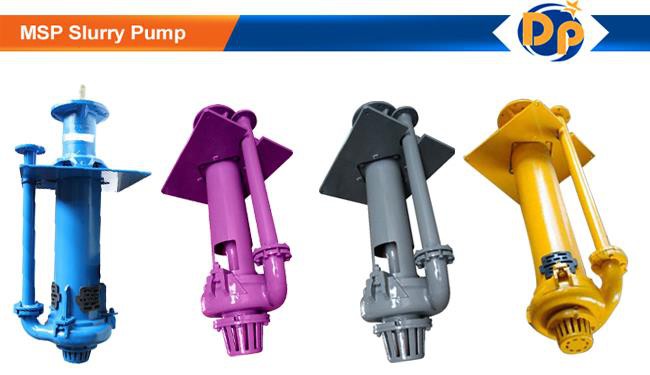

MSP heavy duty sump pumps are vertical, shaft driven centrifugal slurry pumps designed for transferring abraisive and high density slurries from sumps, pits and other submersible sources.
Models are available in sizes ranging from 40mm to 250mm discharge and are capable of flow rates from 5 to 350
litres per second (79-5540 USGPM) at heads of up to 40 metres (130ft). The heavy duty design of the MSP pumps allows the passage of large particles with a diameter of up to 50mm.
Pumps will continue to operate even when the top inlet is not submerged, allowing the liquid level to to be lowered to the bottom of the sump or pit. Suction extension pipes of up to 2 metres in length can be added to the bottom inlet of the pump to extend the pumping depth
Designed as a fixed installation the MSP provides reliable pumping performance with minimal maintenance requirements and simple servicing.
CANTILEVERED SHAFT
The standard MSP pumps feature a cantilevered shaft which is up to 2400mm long. The cantilevered shaft means that there is no shaft sealing requirement and the drive end bearings do not come into contact with any pumped product. This reduces the risk of bearing failure and extends the wear life of the pumps.
HEAVY DUTY WET END
Wet end components are manufactured from high quality 27% chrome white iron or rubber coated steel for exceptional wear resistance and service life with minimal corrosion. The heavy duty design can pump high density and abraisive slurries and the large passages of the impeller allows the transfer of large particles without blockages in a wide range of mining, processing and heavy industrial applications. Wet end stub shaft options are availableto suit severe duty applications.
JUST CONTACT DEPUMP, WE WILL GIVE YOU THE BEST SOLUTIONS!
Email: serena@deponpump.com
Whats app/wechat: 8615933979631
