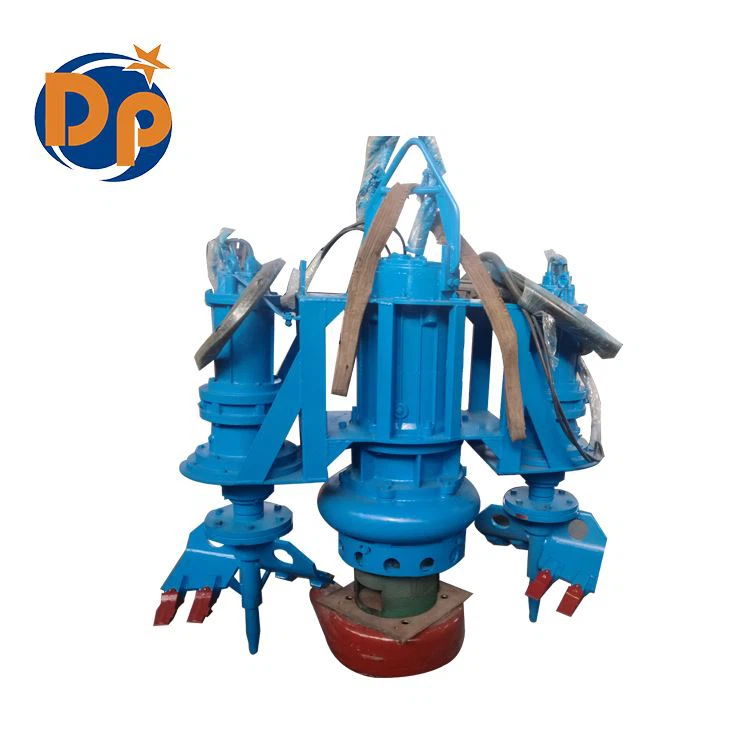

15kw submersible slurry pump set with agitators and frequency conversion control cabinet control panel.
15kw Submersible Slurry Pump Set
15kw submersible slurry pump set with agitators and frequency conversion control cabinet control panel.
Project specification:
Head: 15m
Flow: 150m3/h
Speed: 1450rpm
Outlet: 100mm
Material: Mechanical seal/cast iron/high chrome 27%/Ultra Chrome 27% Cr-A05
Voltage: 380v 50hz
Power: 15kw
Agitator: 4kw
Frequency conversion control cabinet: ROBINCON brand, type:1 control 3
Each motor is provided with two protection channels
Production time: 25 working days
| Model | Outlet Dia. (mm) | Capacity (m³/h) | Head (m) | Power (Kw) | Speed (r/min) | Max.Dia.of Solid (mm) | Pump Weight (kg) |
| SS45-15-5.5 | 80 | 45 | 15 | 5.5 | 1460 | 13 | 100 |
| SS15-20-5.5 | 80 | 15 | 20 | 5.5 | 1460 | 13 | 100 |
| SS30-30-7.5 | 80 | 30 | 30 | 7.5 | 1460 | 13 | 114 |
| SS50-26-11 | 80 | 50 | 26 | 11 | 1460 | 13 | 165 |
| SS75-25-15 | 100 | 75 | 25 | 15 | 1460 | 13 | 220 |
| SS150-18-18.5 | 150 | 150 | 18 | 18.5 | 980 | 32 | 550 |
| SS200-12-22 | 150 | 200 | 15 | 22 | 980 | 45 | 580 |
| SS60-46-30 | 150 | 60 | 46 | 30 | 980 | 21 | 700 |
| SS150-30-30 | 150 | 150 | 30 | 30 | 980 | 21 | 550 |
| SS300-20-37 | 200 | 300 | 20 | 37 | 980 | 28 | 775 |
| SS200-30-45 | 150 | 200 | 30 | 45 | 980 | 36 | 1000 |
| SS500-15-45 | 250 | 500 | 15 | 45 | 980 | 46 | 1100 |
| SS250-35-55 | 150 | 250 | 35 | 55 | 980 | 36 | 1140 |
| SS600-15-55 | 250 | 600 | 15 | 55 | 980 | 46 | 1140 |
| SS350-35-75 | 200 | 350 | 35 | 75 | 980 | 28 | 1550 |
| SS500-20-75 | 200 | 500 | 20 | 75 | 980 | 25 | 1550 |
| SS200-60-90 | 150 | 200 | 60 | 90 | 980 | 14 | 1550 |
| SS400-40-90 | 200 | 400 | 40 | 90 | 980 | 28 | 1550 |
| SS600-30-110 | 200 | 600 | 30 | 110 | 980 | 28 | 1970 |
| SS1000-18-110 | 300 | 1000 | 18 | 110 | 980 | 50 | 1970 |
| SS500-45-132 | 200 | 500 | 45 | 132 | 980 | 28 | 2000 |
| SS1000-22-132 | 300 | 1000 | 22 | 132 | 980 | 50 | 2000 |
| SS650-52-160 | 200 | 650 | 52 | 160 | 980 | 28 | 2650 |
| SS780-50-185 | 300 | 780 | 50 | 185 | 980 | 38 | 3330 |
| SS800-55-220 | 300 | 800 | 55 | 220 | 980 | 38 | 3400 |
| SS1250-35-220 | 350 | 1250 | 35 | 220 | 980 | 45 | 3400 |
| SS1750-30-250 | 350 | 1750 | 30 | 250 | 980 | 55 | 3500 |
| SS2000-35-315 | 400 | 2000 | 35 | 315 | 980 | 60 | 3700 |
Structural features
1. The pump is divided into two structures: hydraulic motor drive and motor drive. When the motor is driven, the motor adopts mechanical seal protection, which can effectively prevent high-pressure water and impurities from entering the inner cavity of the motor; when the hydraulic motor is driven, the pump bearing assembly adopts mechanical seal protection, which can effectively prevent high-pressure water and impurities from entering the inner cavity of the bearing assembly.
2. In addition to the main impeller, there is also a stirring impeller, which can stir the slag deposited at the bottom of the water into a turbulent flow and then extract it.
3. The main flow parts such as impeller and stirring impeller are made of high wear-resistant materials, which are wear-resistant, corrosion-resistant, non-clogging, and have strong sewage discharge capacity, and can effectively pass larger solid particles.
