Tackle tough slurry transfer? Our hydraulically driven slurry pump excels! High torque handles thick, abrasive slurry—perfect for mining, construction, or wastewater jobs. Hydraulic power ensures stable operation, even in harsh conditions. Durable build resists wear, low maintenance. Boost efficiency for your heavy-duty slurry tasks!

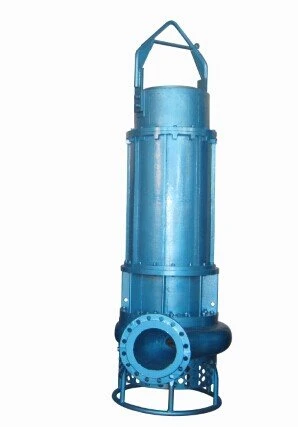

hydraulically driven slurry pump
Introduction of hydraulically driven slurry pump
The whole machine is hydraulically driven slurry pump, and the motor adopts oil chamber seal mode and is provided with mechanical seal inside, so that high pressure water and impurities are effectively prevented from entering inner cavity of the motor.
1. Besides the main impeller of hydraulically driven slurry pump, there is the agitation impeller which can agitate the sludge deposited on the
water bottom into turbulent flow and pump the sludge out.
2. The overflowing parts of hydraulically driven slurry pump such as the impeller and the agitation impeller are made from high-hardness high chromium cast steel, have wear resistance, corrosion resistance and strong drainage capacity, and allow big solid particles to pass.
3. The motor of hydraulically driven slurry pump is submerged in water, is not limited by suction stroke, and has high sludge suction rate and thorough desilting.
4. The integral device hydraulically driven slurry pump is simplified, needs no auxiliary stirrer device or ejector device, and has simple and convenient operation and low total investment of the unit.
Main application of this kind of submersible slurry pump
1.hydraulically driven slurry pumping tailing slurry for industrial and mining organizations, clearing silt in sedimentation basin, pumping silty sand or fine sand for seashore or port, pumping powdery iron ore for foreign countries, etc.
2.Hydraulically driven slurry pumphe overflowing parts adopt wear-resistant alloy material and have long service life. In suitable construction environment, the mating is simple and convenient in operation and application. If the sand is large, high pressure gun can be added to increase the medium concentration
Service conditions
1. Power supply
The power source of hydraulically driven slurry pump is 50Hz/380V three-phase alternating-current supply,
2. Temperature of the medium
The temperature of the medium cannot exceed 60Celsius, and the medium does not contain inflammable or explosive gases.
3. Max weight density of the solid particle
The maximum weight concentration of the solid particles in the medium: the maximum weight concentration of the ash is 45% and the maximum weight concentration of the slag is 60%.
4. Submerged depth
not more than 20 meters, and not less than 1 meter.
