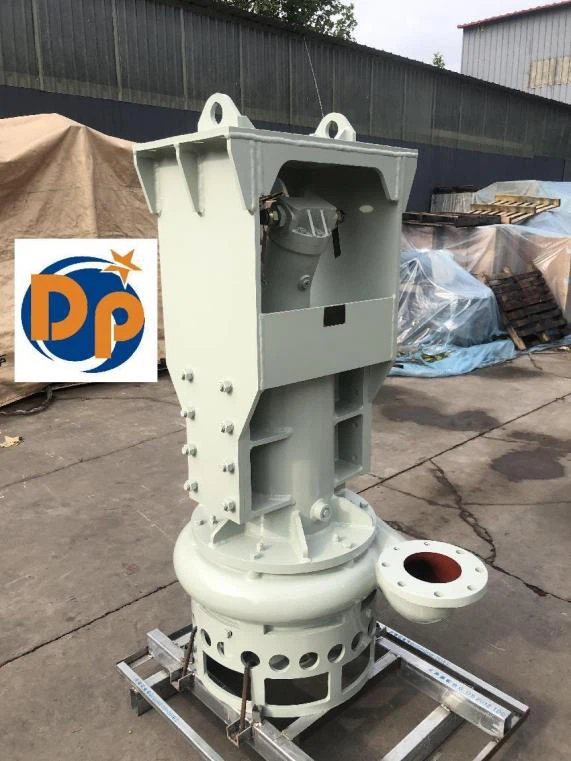

Hydraulically Driven Submersible Slurry Pump

Introduction:

Hydraulically driven submersible slurry pump ,the whole set of equipment can be flexibly matched with other equipments, such as Hydraulic Oil Unit, Excavator, Loading machine and etc.. Breaking power restrictions, flexible transitions, especially in remote areas. This series of products is designed and manufactured by absorbing foreign advanced technology.

Install a set of cutter device on both side of submersible slurry pump, the sediment can be stirred

and loosened, and the solid medium is transport to the suction port of pump. The unique sealing device ensures the reliability of the mechanical seal and maximizes its service life. Hydraulically driven load characteristics for long-term stable and safe operation under the severe operating conditions.

Application:

Hydraulically driven submersible slurry pump is an innovative and crucial piece of equipment,It is suitable for the medium with variable size of solid in sediment, cinder, tailings, ore etc., mainly used in metallurgy, mining, thermal power plants, steel, water treatment, sand mining, mining, ports, rivers, lakes, ponds and dredging; suction and transport for the sediment medium such as port construction and river beach filling,These pumps are specifically designed to handle abrasive and corrosive materials, making them ideal for pumping slurries, sand, and silt. it is a great replacement of the traditional mud pump.

Applicable condition:

1.The hydraulic system can be directly driven by diesel engine, motor driven hydraulic pump station or excavator and loader.

2. The max temperature of hydraulic oil must not exceed 80°C, it needs to install cooling device for forced cooling for long-term work.

3. The maximum volume concentration of solid particles in the medium can reach 60%.

4. It is great to keep the pump working in upright position, the pump can run continuously.

Advantage:

1.One of the primary advantages of using a hydraulically driven submersible slurry pump is that it can operate in both wet and dry conditions. This is because the pump is designed to operate below the waterline, allowing it to continuously pump water and slurry without interruption. This feature makes it an ideal choice for mining operations, where the pump can be used to dewater underground mines.

2.Another benefit of these pumps is their versatility. They can handle a wide range of materials, from small rocks and gravel to larger particles like sand and silt. This makes them an excellent choice for construction sites where there is a need to move large amounts of materials quickly and efficiently.

3.Hydraulically driven submersible slurry pumps are also incredibly efficient. They are designed to provide high flow rates with minimal energy consumption, making them an ideal choice for jobs that require large volumes of water or slurry to be moved quickly. Because they are so efficient, they are also cost-effective, which is an important consideration for many industries.

4.The durability of these pumps is another significant advantage. They are built to withstand harsh conditions and can handle high levels of abrasion and corrosion. This is particularly important in the mining industry, where the pump may be exposed to highly abrasive materials for extended periods of time.

5.Another benefit of hydraulically driven submersible slurry pumps is their ease of use. They are designed to be simple and straightforward to operate, which makes them an excellent choice for non-technical workers. They are also low-maintenance, which reduces the need for frequent repairs and maintenance.

6.Finally, these pumps are environmentally friendly. They are designed to reduce the amount of water and slurry that is wasted during pumping operations, which helps to minimize environmental impact. This is particularly important in industries where water is a precious resource, such as oil and gas and mining.

In conclusion, hydraulically driven submersible slurry pumps are an innovative and essential piece of equipment for a range of industries. They offer a range of benefits, including versatility, efficiency, durability, ease of use, and environmental friendliness. By investing in these pumps, businesses can improve their operations and increase productivity while reducing the impact on the environment.
