The Depump IS \ ISR type single-stage end-suction centrifugal pump is an energy-saving pump designed by teamwork in the whole nation. This pmup is suitable for industrial and city water supply ,water drainage, and widely used for agricultural irrigation, transportation pure water or other liquids while physical and chemical nature is similar to pure water, and the temperature should not be higher than 80 ℃.

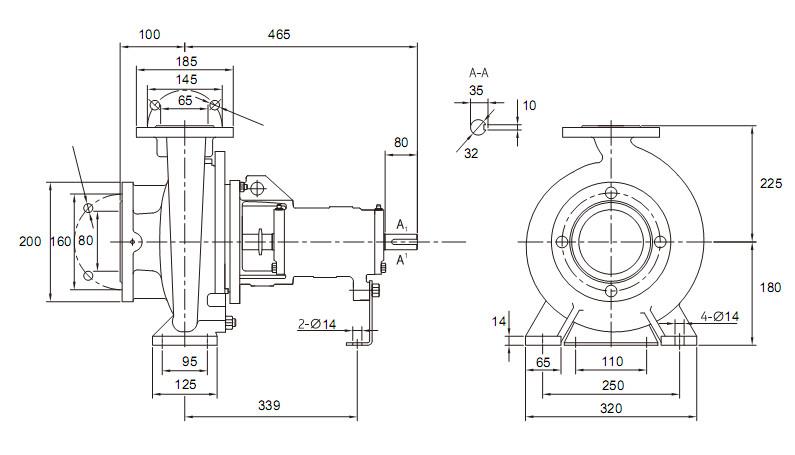

| ISA65/20 | ||
| Parameters: | Model: | ISA65/20 |
| Flow: | 110 m3/h | |
| Head: | 56.5 m | |
| Speed: | 1450rpm | |
| Inlet: | 80 mm | |
| Outlet: | 65 mm | |
| NPSHr: | 3.7m | |
| Efficiency: | 73.3 % | |
| Shaft power: | 23.08 kw | |
| Material | Pump casing: | Cast iron |
| Pump impeller: | Brass | |
| Shaft: | 2Cr13 | |
| Shaft seal: | Mechanical seal | |
| Shaft sleeve: | Carbon steel | |
