Product Details

Electric Power and Multistage Pump Structure pumps water pump

D主图

Basic Info

  • Model NO.: D/MD/DG/DY

  • Max.Capacity: 800m3/H

  • Material: Stainless Steel or Cast Iron

  • Power: Electric

  • Application: Chemical Pump, Boiler Water Feed Pump, Mining Pump

  • Performance: Good Performance

  • Origin: Hebei, China

  • Max.Head: 1500

  • Driving Type: Motor

  • Structure: Multistage Pump

  • Start Up: Electric Pump

  • Media: Water or Liquid Similar with Water

  • Theory: Centrifugal Pump

  • Transport Package: Plywooden Case

  • HS Code: 8413709990


Application:

1. Daily and fire water supply for high-rise
2. Water supply and discharge in mines
3. Cyclic pressurization, air-conditioning system.

Type D/MD/DG/DY multistage Pump is single-suction, multi-stage, segmental centrifugal pump. Type D It is provided for delivering clear water without solid particles or other liquid which is physically and chemically similar to clear water.

The temperature of the liquid is -20º C~ 80º C...Type DY is used to transfer non-corrosive oil and oil products without solid particles and with viscosity less than 120 centistokes. The temperature of the liquid is -20º C~ 150º C Type DG is used to transfer corrosive liquid without solid particles, The temperature of the liquid is --20~+150º C. Type MD is used to transfer clear water or liquid which is physically and chemically similar to clear water with limited solid particles


Performance:
capacity: 6.3-900 m3 / h.
Head: 50-1500 m;
Speed: 1480rpm, 2950 rpm;
Diameter: φ50-200;
Medium temperature: 160 oC or less;

Working pressure: less than 25mpa

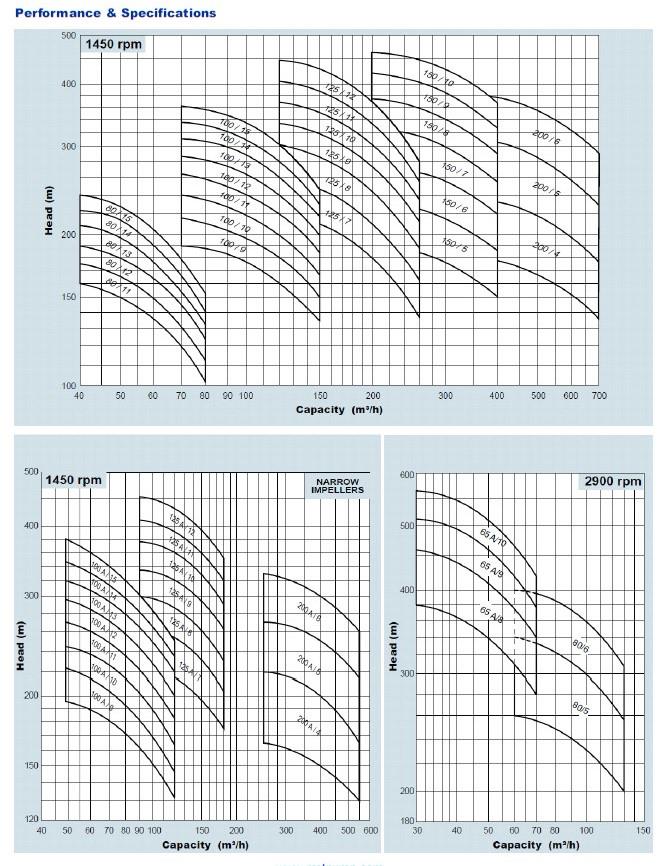

Multistage water pump performance Curve


Product features:
1, advanced hydraulic model, high efficiency and wide performance.
2, pump smooth operation, low noise.
3, shaft seal adopt soft packing seal or mechanical seal, safe and reliable sealing, simple structure, convenient maintenance.
4, shaft seal structure for the whole, to ensure that the no contact with the media, no corrosion, long service life.

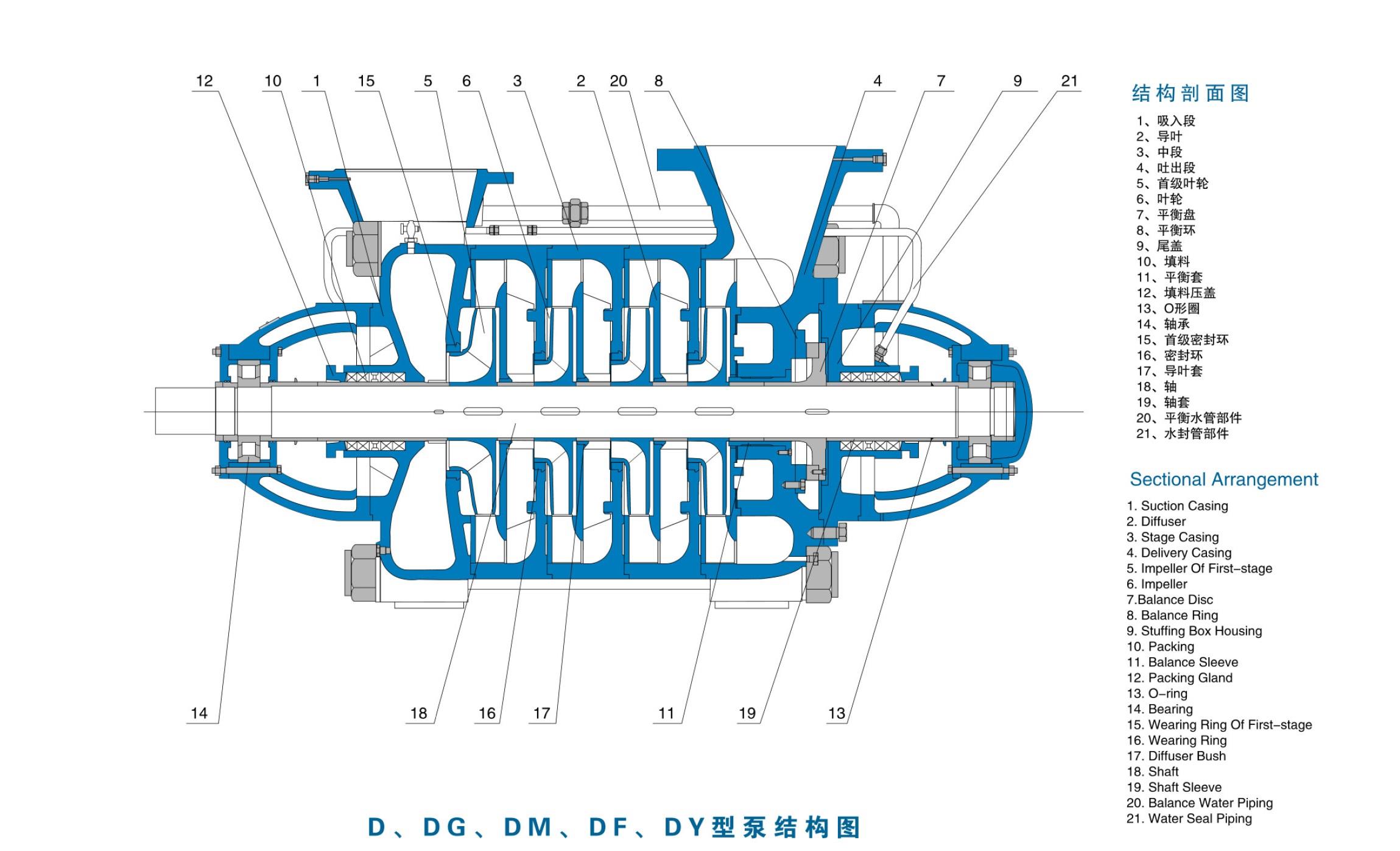

high pressure Cast Iron Multistage Diesel Engine Booster Water Pump

Model meaning:
For example: D450-60*8(P)
D: single suction multistage horizontal centrifugal pump
DG: single suction multistage horizontal centrifugal pump for hot water
MD: single suction multistage horizontal wearable centrifugal pump for mine
DF: single suction multistage horizontal anti corrosion centrifugal pump
450: capacity
60: single stage head
8: stage quantity
P: self balance

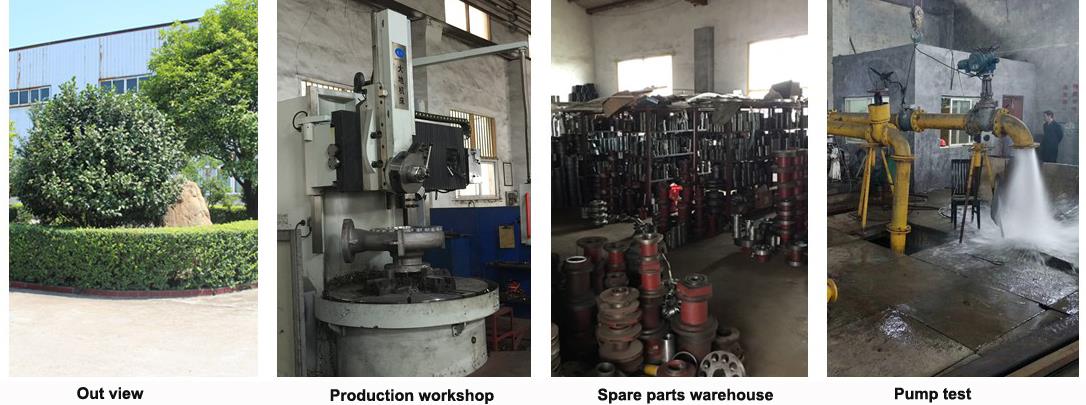

Multistage-water-pump-manuf


Warranty Period:
1) Please operate according to pump productdescription. If you have any questions of pumps, kindly contact us, we will offer you the most professional and the best service.
2) We guarantee our products for a period of ONE YEAR from date of dispatch from our factory (The warranty doens't apply to wearing parts).
