The Depump Gravel Pump is the world's standard for the most difficult mill duties. A wide variety of impeller and shaft seals provide a perfect fit for a wide range of applications. The Depump® gravel pump provides excellent wear life while maintaining efficiency during the wear cycle...
G Series Centrifugal High Efficiency Concrete Slurry Pump For Sale
Product Description
Pump type: 6/4MD-G
Diameter of inlet/outlet: 6/4''
Impeller Code: DG4137
Permissible max. particle size: 82mm
Flow: 10-70L/S
Head: 6-50m
Power max.: 60-150kw
Features
G series pump is mainly used for continuous conveying of abrasive materials which are too large for general slurry pumps. It is suitable for dredging, sand absorption, dredging of rivers, mining and slag transportation of metal smelting.
1 Bearing assembly:large diameter shaft with short overhang contributes to long bearing life;
2 Liners:Easily replaceable liners are bolted, not glued to the casing for positive maintenance;
3 Casing:Casing halves of cast or ductile iron provide high operating pressure capabilities;
4 Impeller:Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination;
5 Throatbush:Wear is reduced and maintenance simplified by the use of tapered.

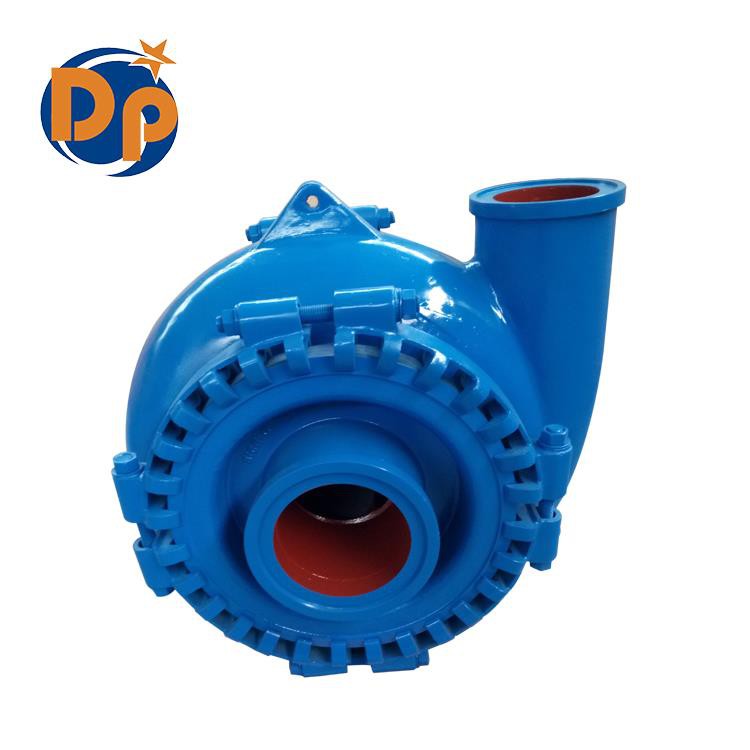

Pump Picture
Our Services
1. Pump testing report
2. Shorten production time
3. Flexible choice of transportation
4. Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to repalce.
