Mining Hydraulic Submersible Slurry Centrifugal Pump

Mining Hydraulic Submersible Slurry Centrifugal Pump

This is the parameter of one of the Mining Hydraulic Submersible Slurry Centrifugal Pump models:

Model: YSS150-16-18.5

Flow: 150m3/h

Head: 16m

Power: 18.5kw

Speed: 1460rpm

Eff.: 60%

Material:

Pump casing: High chrome

Impeller: High chrome

Shaft:2Cr13

Shaft sleeve: Mechanical Seal

Voltage/frequency: 380v/50hz/3p

SS25-40-18.5 Mining Hydraulic Submersible Slurry Centrifugal Pump dimension drawing

SS25-40-18.5 Mining Hydraulic Submersible Slurry Centrifugal Pump cuvre data

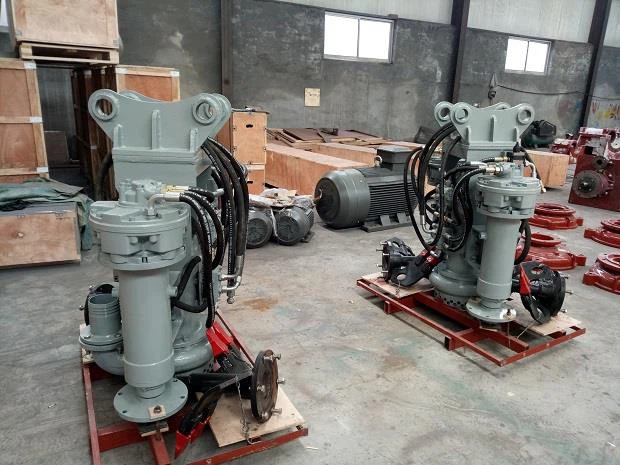

Finished product picture of Mining Hydraulic Submersible Slurry Centrifugal Pump：

What is the hydraulic submersible slurry pump?

The hydraulic slurry pump is a kind of machinery which can increase the energy of solid-liquid mixed medium by means of centrifugal force and convert the electric energy into the kinetic energy and potential energy of the medium.

What working condition is the hydraulic submerged slurry pump suitable for?

Mining, power plant, dredging, metallurgy, chemical industry, building materials, petroleum and other industries and is mainly used for slurry transportation in converter dedusting water, blast furnace gas washing water, continuous casting turbid circulating water and rolling turbid circulating water systems in iron and steel enterprises.

What medium is delivered by hydraulic submerged slurry pump?

The slurry pump delivers a mixture of solid particles containing slurry and water.

But in principle, the slurry pump is a kind of centrifugal pump.

Above are the introduction for Mining Hydraulic Submersible Slurry Centrifugal Pumps.

If you need or have any interest, please contact me. Looking forward to having an opportunity to cooperate with you.
