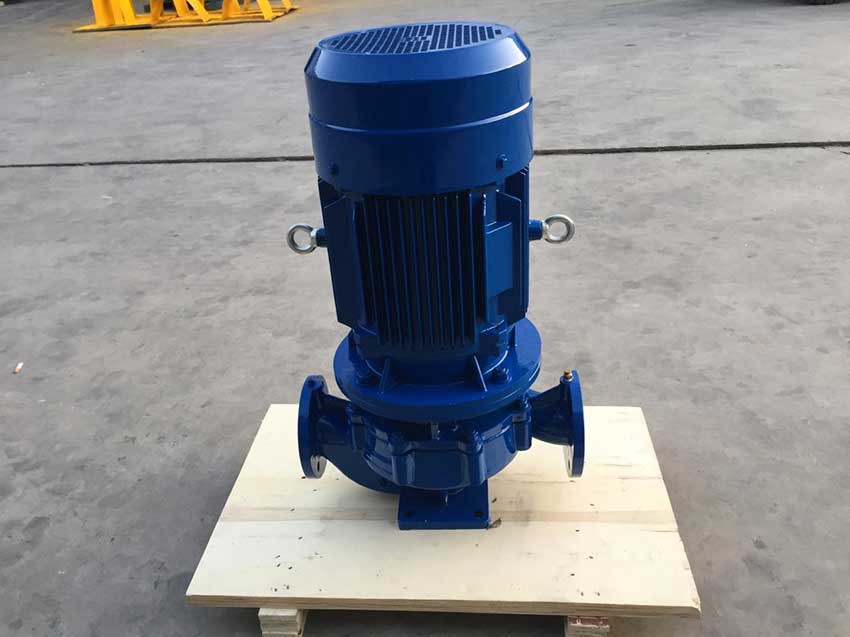

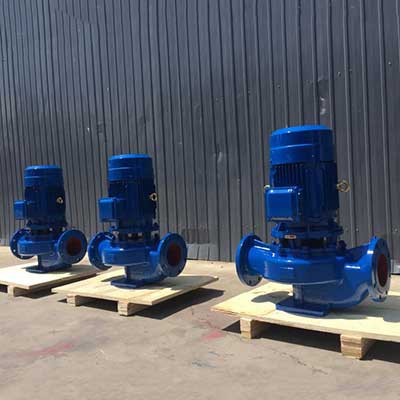

ISG Vertical Inline Centrifugal Pump

The ISG Vertical Inline Centrifugal Pump is a vertically installed single-stage single-suction centrifugal pump. The pump adopts the performance parameters of the IS type centrifugal pump and is designed in combination with the general vertical pump.

Main purpose

The ISG Vertical Inline Centrifugal Pump can be used to transport clean water and other liquids similar to clean water. It is usually used for industrial and urban drainage, pressurized water supply in high-rise buildings, as well as some fire pressurization, long-distance water delivery, etc. It can also be equipped with water circulation pressurization equipment.

Working conditions

The maximum working pressure available for the pump is 1.6Mpa, and the operating temperature needs to be less than 80°C. If it exceeds 80℃, you need to choose other vertical pipeline pumps.

Model meaning

ISG 100-160 (I) A

ISG - ISG Vertical Inline Centrifugal Pump

100 - Pump inlet and outlet diameter

160 - Impeller nominal outer diameter

(I) - Traffic classification (I means larger traffic; no I means smaller traffic)

A - Impeller cutting gear (A is primary cutting, B is secondary cutting)

Structural description

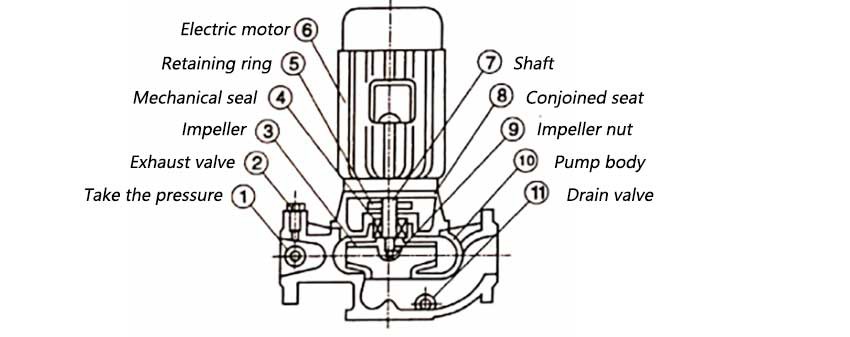

ISG type structure description

1. The pump and motor have the same end cover, with shortened axial dimensions and simple structure.

2. The pump body is equipped with pressure holes and water discharge holes.

3. The pump body is equipped with an exhaust valve, which can discharge the air in the pump before work.

4. The bottom of the pump body is equipped with a mounting base plate and bolt holes to ensure that the overall The unit is installed securely.

In general, ISG Vertical Inline Centrifugal Pump has a compact structure and is easy to install. Whether it is pressurized water supply for high-rise residential areas, factory drainage, firefighting water delivery, or even long-distance water transportation, it can come in handy.
